Parker 36750817 Male Connector Push-to-connect 8mm Bspt

Product Description

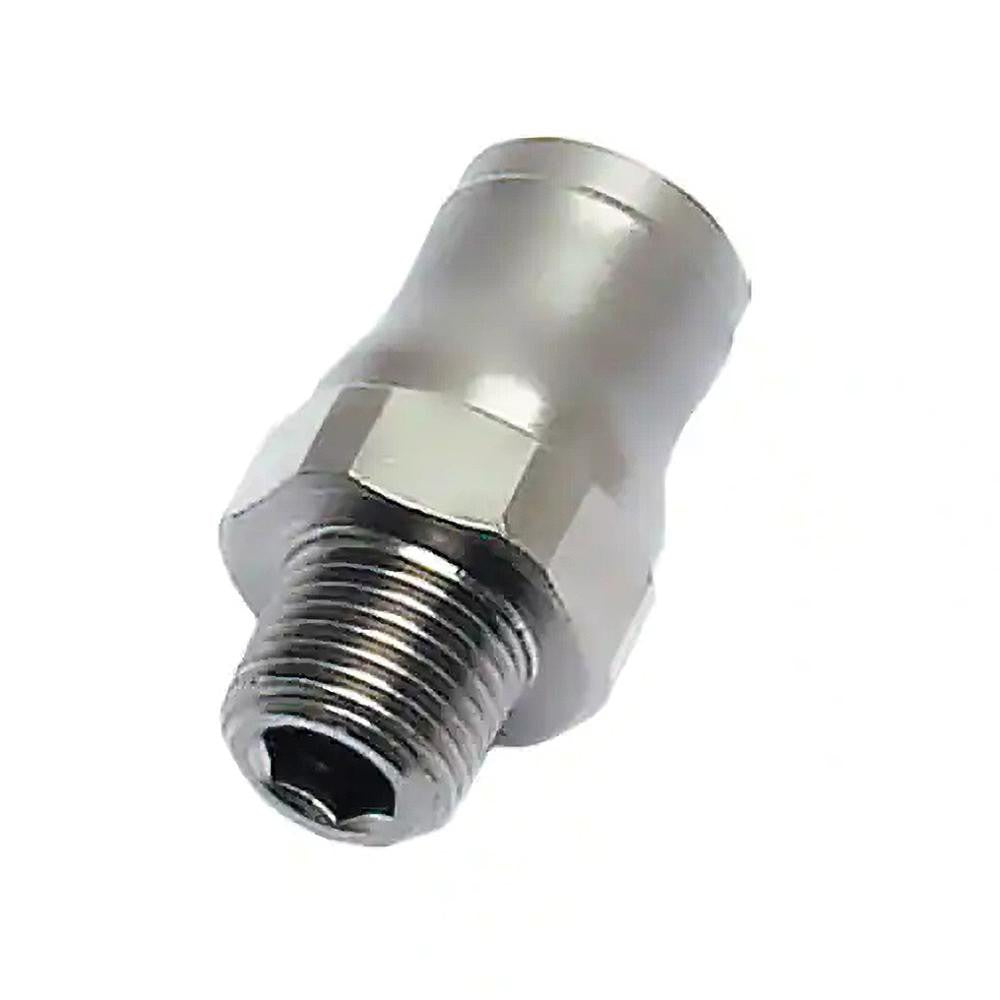

The PARKER 36750817 is a push-to-connect male connector tube fitting designed for fast, tool-free tube connections in pneumatic and fluid systems. Constructed from nickel-plated brass with an FKM o-ring seal, it handles working pressures up to 435 psi across a wide temperature range of -13 degrees F to 302 degrees F. The fitting accepts 8mm outside-diameter tubing on both tube ends and connects to male BSPT threaded ports. It is specified for installations where reliable leak-free performance and broad regulatory compliance are required. Licensed plumbers, fluid system technicians, and OEM equipment assemblers typically install this fitting.

This fitting is suited for both light industrial and specialty process applications. Approved use cases include food processing lines, coffee machine plumbing, in-plant automotive assembly, medical equipment, printing systems, misting systems, and welding robot coolant circuits. The push-to-connect design speeds assembly and allows field reconnection without additional tooling, making it practical for high-volume OEM builds and service environments alike. Sold in a package quantity of 5 with a minimum order quantity of 1 package.

Key Features

• Push-to-connect design allows fast, tool-free tube insertion on both tube ends
• Nickel-plated brass construction provides corrosion resistance in wet and process environments
• FKM o-ring seal rated for -13 degrees F to 302 degrees F service temperature
• Rated to 435 psi maximum working pressure
• 3/8 inch BSPT male thread for direct port connection
• Compliant with RoHS, REACH, ATEX, PED, FDA 21 CFR, NSF H1, and ISO 14743 standards

Compatibility

Designed for use with 8mm outside-diameter tubing in food processing, coffee machine, in-plant automotive, medical equipment, printing, misting, and welding robot applications requiring BSPT threaded port connections.

Installation Notes

Installation should be performed by a qualified plumber or fluid system technician familiar with BSPT thread engagement and push-to-connect fitting procedures. Depressurize and isolate the system completely before removing or installing any fitting. Verify tube ends are cut cleanly and squarely with no burrs before inserting into the push-to-connect collet to ensure a proper seal. Consult applicable codes and the equipment manufacturer guidelines for system pressure testing after assembly.
