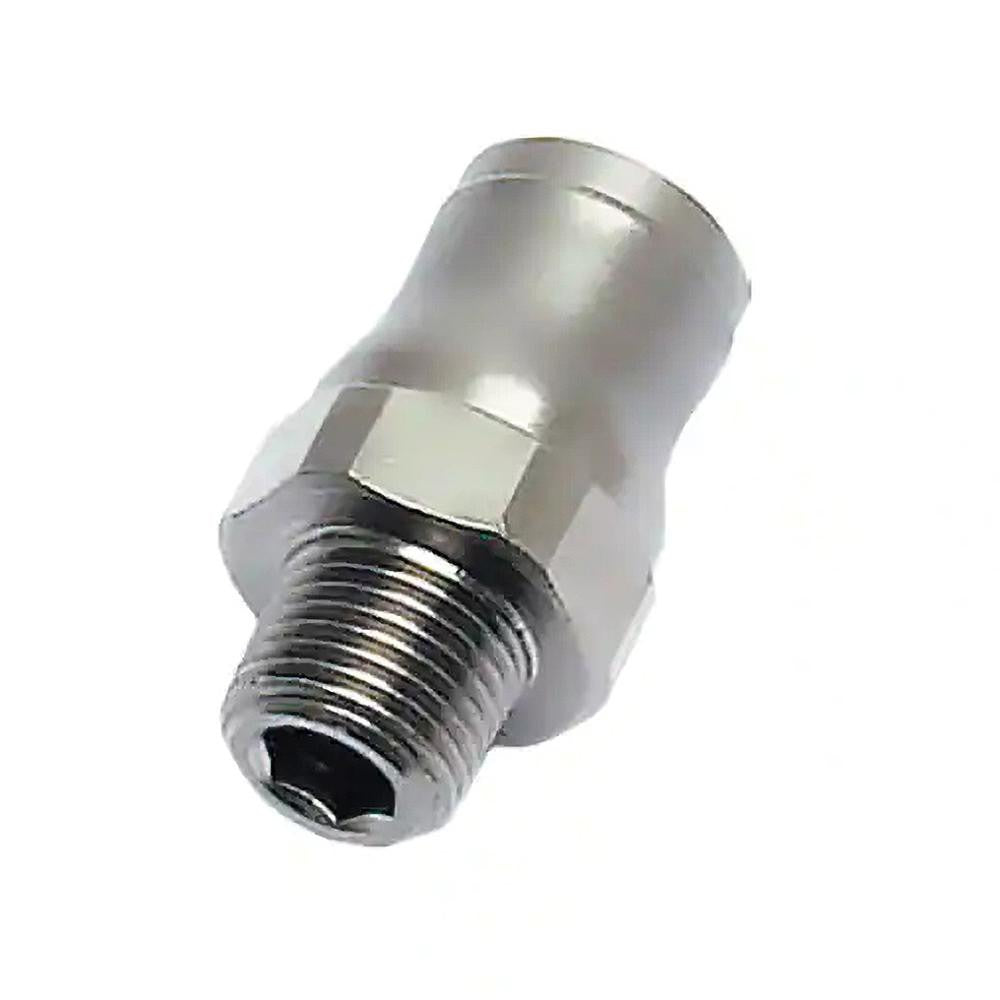

Parker 36750613 Push-to-connect Male Connector Bspt

Product Description

The PARKER 36750613 is a push-to-connect tube-to-male fitting in a straight male connector configuration. It accepts 6 mm outside-diameter tubing on the push-to-connect end and terminates with a 1/4 inch BSPT male thread on the opposite end. The body is nickel-plated brass with an FKM O-ring seal, rated to 435 psi maximum working pressure. The operating temperature range runs from -13 degrees F to 302 degrees F, making it suitable for both liquid and gas service lines. Plumbers, pipefitters, and fluid-system technicians install this fitting where a push-to-connect tube circuit must transition to a BSPT-threaded port.

This fitting is appropriate for residential and light commercial fluid and gas distribution systems where 6 mm OD tubing meets a BSPT-threaded component such as a valve body, manifold, or instrumentation port. The push-to-connect design allows tool-free tube insertion, which speeds up assembly and simplifies field repairs. It carries multiple compliance certifications including RoHS, ATEX, PED, REACH, FDA 21CFR, and ISO 14743, supporting use in regulated or food-adjacent environments.

Key Features

• Push-to-connect end accepts 6 mm outside-diameter tubing without additional tools
• 1/4 inch BSPT male thread for direct connection to BSPT-ported components
• Nickel-plated brass body resists corrosion in wet and humid service conditions
• FKM O-ring seal rated for both liquid and gas media
• 435 psi maximum working pressure with a temperature range of -13 degrees F to 302 degrees F
• Certified to RoHS, ATEX, PED, REACH, FDA 21CFR, and ISO 14743 standards

Compatibility

Designed for use with 6 mm outside-diameter tubing in liquid and gas service applications requiring a BSPT-threaded male port connection.

Installation Notes

Installation is performed by plumbers or pipefitters working on fluid or pneumatic systems. Shut off and depressurize the line fully before inserting or removing tubing from the push-to-connect end. Ensure the tube end is cleanly cut, deburred, and fully seated to the depth mark before pressurizing. Apply thread sealant appropriate for the media type to the BSPT male threads per system requirements and local plumbing code.
