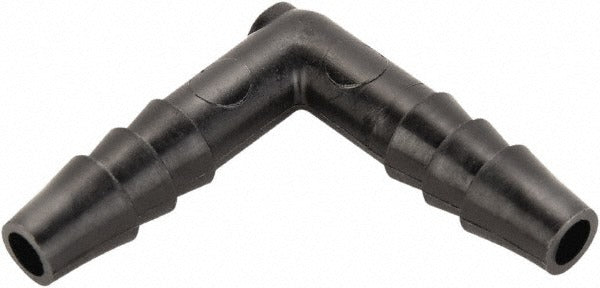

Parker 365HB-6PP Barbed Tube Union Elbow 3/8 in

Product Description

The PARKER 365HB-6PP is a single-barb union elbow fitting designed to connect two flexible tubes at a 90-degree angle without the use of threads or tools. Made from black polypropylene, this fitting accepts tubing with a 3/8 inch inside diameter and a 0.43 inch outside diameter on both ends. It is rated to 125 psi maximum working pressure and handles temperatures from 0 degrees F to 212 degrees F, making it suitable for a broad range of fluid-handling applications. The 365HB-6PP meets FDA compliance and NSF/ANSI 51 standards, which apply to materials in contact with food-equipment fluids. Plumbers, refrigeration technicians, and equipment service pros typically install this fitting in low-pressure tubing runs.

This fitting is used in residential and light commercial applications where flexible tubing must change direction in a confined space. Typical install scenarios include beverage equipment, food-service machinery, water filtration lines, and general fluid-transfer plumbing where polypropylene chemical resistance and food-contact compliance are required. The single-barb design secures tubing with a clamp or tie rather than a double-barb interference grip, allowing easier disassembly during service.

Key Features

• Single-barb union elbow connects two 3/8 inch ID flexible tube ends at 90 degrees
• Polypropylene construction resists corrosion and common cleaning chemicals
• Rated to 125 psi maximum working pressure
• Temperature range: 0 degrees F to 212 degrees F (−12.2 degrees C to 100 degrees C)
• FDA compliant and NSF/ANSI 51 certified for food-equipment fluid contact
• Black color; accepts 0.43 inch OD tubing on both ports

Compatibility

Designed as an OEM-style replacement or service fitting for flexible tubing systems with a 3/8 inch inside diameter and 0.43 inch outside diameter. Suitable for use in food-service, beverage, and water-filtration equipment where NSF/ANSI 51 compliance is required.

Installation Notes

Installation is typically performed by a plumber or equipment service technician. Shut off the fluid supply and relieve line pressure before disconnecting or inserting any barbed fitting. Push tubing firmly over the barb until it seats fully, then secure with an appropriately rated clamp or tie to prevent blowoff at rated pressure. Do not exceed the 125 psi pressure or 212 degrees F temperature rating of this fitting.
