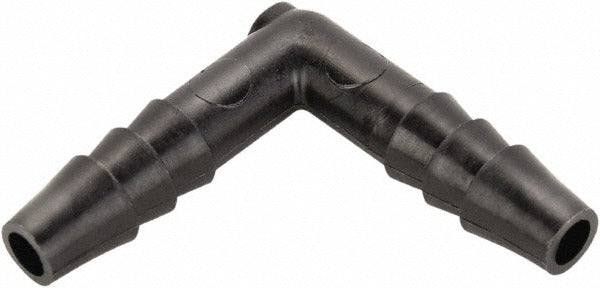

Parker 365HB-10PP Barbed Tube Union Elbow 5/8 Inch

Product Description

The PARKER 365HB-10PP is a single-barb tube union elbow fitting designed to join two sections of flexible tubing at a 90-degree angle without the need for threaded connections or clamps. Manufactured from polypropylene and colored black, this fitting accommodates a 5/8 inch tube inside diameter and a 0.66 inch tube outside diameter on each port. It is rated for a maximum working pressure of 125 psi and a temperature range of 0 degrees F to 212 degrees F, making it suitable for a broad range of fluid-handling applications. It carries FDA Compliant and NSF/ANSI 51 certifications, which are required for food-equipment and beverage-contact installations. Plumbing technicians and equipment service pros install this fitting in both commercial and light industrial settings.

This union elbow is used in food service equipment, beverage dispensing systems, water treatment assemblies, and other fluid-transfer applications where a directional change in tubing is needed. The NSF/ANSI 51 rating makes it appropriate for installations where incidental food or beverage contact is a compliance requirement. Its polypropylene construction resists corrosion and common cleaning chemicals, and the barbed design allows fast, tool-free assembly with compatible flexible tubing.

Key Features

• Single-barb union elbow connects two 5/8 inch ID flexible tube runs at a 90-degree angle
• Polypropylene construction resists corrosion and common chemical cleaners
• Rated to 125 psi maximum working pressure
• Operating temperature range of 0 degrees F to 212 degrees F
• FDA Compliant and NSF/ANSI 51 certified for food-equipment applications
• Barbed design allows fast assembly without tools or additional hardware

Compatibility

Designed for use with flexible tubing having a 5/8 inch inside diameter and a 0.66 inch outside diameter. Suitable for food service, beverage dispensing, and water treatment plumbing assemblies requiring an NSF/ANSI 51 compliant union elbow fitting.

Installation Notes

This fitting is typically installed by licensed plumbers or qualified equipment service technicians. Depressurize and drain the system completely before removing or installing any fittings. Push tubing firmly over each barb until it seats fully against the fitting body; use a hose clamp where system pressure or vibration may loosen the connection over time. Verify that the tubing material and clamp type are compatible with the fluid, temperature, and pressure requirements of the application before placing into service.
