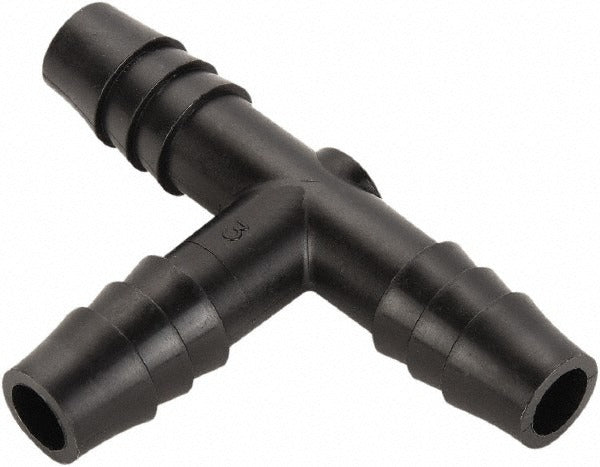

Parker 364HB-8PP Barbed Tube Union Tee 1/2 Inch

Product Description

The PARKER 364HB-8PP is a single-barb tube union tee fitting designed to join three lines of flexible tubing at a common junction point. Constructed from black polypropylene, this fitting accepts 1/2-inch inside diameter tubing with a 0.56-inch outside diameter on all three ports. It carries FDA Compliant and NSF/ANSI 51 certifications, making it appropriate for food equipment and beverage contact applications. With a maximum working pressure of 125 psi and an overall length of 2.52 inches, it suits a wide range of low-pressure fluid transfer systems. Installation requires no tools beyond standard tube-preparation equipment.

This fitting is used in commercial food service equipment, beverage dispensing systems, water treatment lines, and other plumbing or fluid-handling applications where NSF/ANSI 51 compliance is required. The single-barb design provides a positive grip on flexible tubing, resisting pull-out under normal operating pressure. It is commonly installed by licensed plumbers, HVAC technicians, and food equipment service professionals in both light commercial and residential settings. The black polypropylene construction offers resistance to many common fluids and cleaning agents encountered in these environments.

Key Features

• Single-barb union tee configuration joins three 1/2-inch tubing runs at one fitting
• Polypropylene construction resists corrosion and common cleaning chemicals
• FDA Compliant and NSF/ANSI 51 certified for food and beverage contact use
• Rated to 125 psi maximum working pressure
• Operating temperature range: 0 degrees F to 212 degrees F (−12.2 degrees C to 100 degrees C)
• Overall length of 2.52 inches for compact inline installation

Compatibility

Designed as an OEM-style replacement or new-installation barbed union tee for flexible tubing systems with a 1/2-inch inside diameter and 0.56-inch outside diameter.

Installation Notes

Power down or depressurize the fluid system before servicing any fittings or tubing connections. Ensure tubing ends are cut cleanly and squarely for full barb engagement and a leak-free seal. A barb clamp or hose clamp is recommended at each port when system pressure or vibration is present. Follow applicable plumbing codes and NSF installation guidelines for any potable water or food-contact application.
