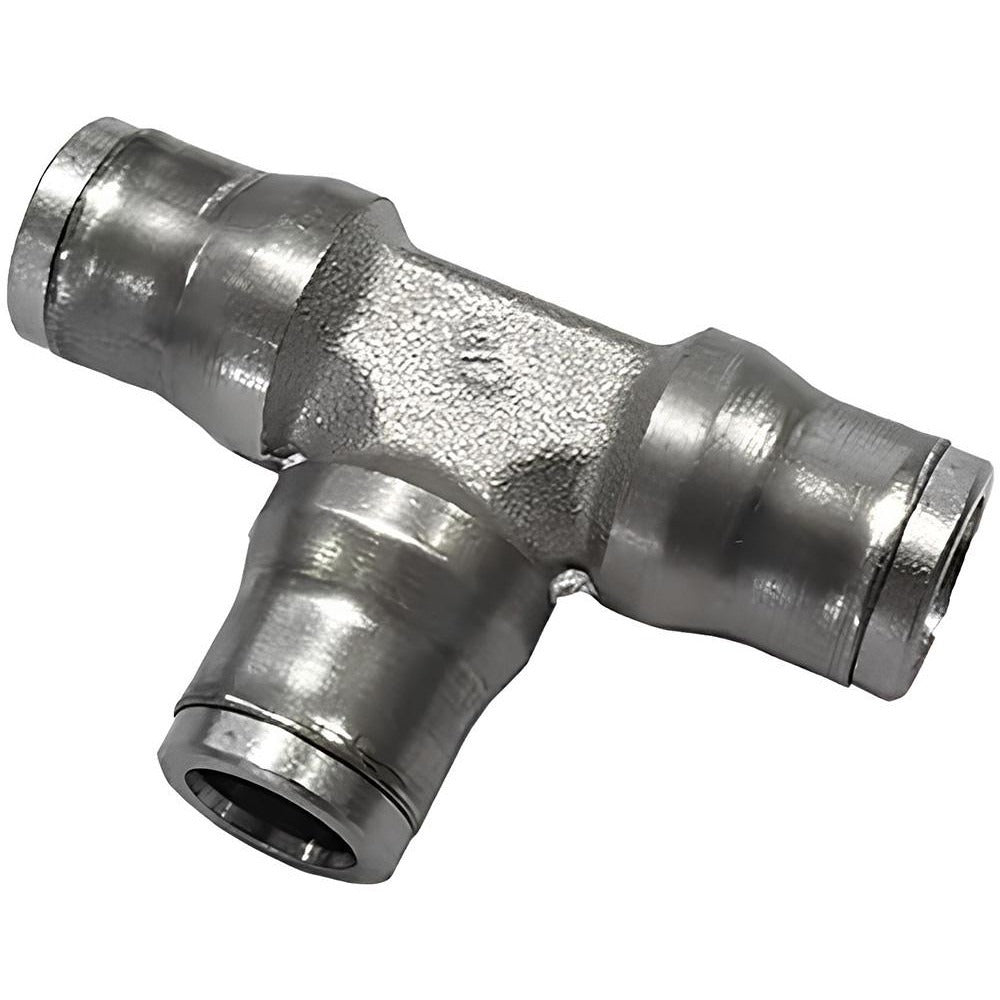

Parker 36041000 Push-to-connect Tube Fitting 10mm 435 Psi

Product Description

The PARKER 36041000 is a push-to-connect tube-to-tube fitting manufactured from nickel-plated brass. It accepts tubing with a 10 mm outside diameter and is rated to 435 psi working pressure. The FKM o-ring seal provides reliable leak-free connections across a wide range of fluid and gas applications. No threading or flaring is required — tubing seats and locks with a single push, reducing installation time in high-volume or tight-access environments. This fitting is suited for plumbing, pneumatic, and process lines wherever a quick, secure tube-to-tube connection is needed. Licensed trades and maintenance technicians working in food processing, medical, automotive, and similar facilities are the primary installers.

The 36041000 is rated for demanding application environments including food processing lines, coffee machines, in-plant automotive systems, medical equipment, printing equipment, misting systems, and welding robots. Its nickel-plated brass body and FKM seal make it appropriate for both fluid and pneumatic service in regulated environments. The fitting meets multiple international standards and certifications, making it a practical choice for facilities operating under FDA, NSF, ATEX, or REACH compliance requirements. Sold in a package quantity of five.

Key Features

• Push-to-connect design — no tools required for tube insertion
• Nickel-plated brass body for corrosion resistance and durability
• 435 psi pressure rating for demanding pneumatic and fluid service
• 10 mm outside diameter tube connection on both ends (tube-to-tube configuration)
• FKM o-ring seal for broad chemical compatibility
• Compliant with FDA (21 CFR), NSF H1, ATEX, REACH, RoHS, PED, and ISO 14743

Compatibility

Designed for use with food processing equipment, coffee machines, in-plant automotive systems, medical equipment, printing equipment, misting systems, and welding robots. Accepts tubing with a 10 mm outside diameter in a tube-to-tube configuration.

Installation Notes

Depressurize and isolate the line before removing or installing push-to-connect fittings. Ensure tubing ends are cut cleanly and squarely — burrs or oval cuts can compromise the o-ring seal and reduce pull-out resistance. Verify tubing outside diameter is within the fitting's specified tolerance before insertion. In regulated environments such as food processing or medical, confirm all materials meet applicable facility and code requirements before installation.
