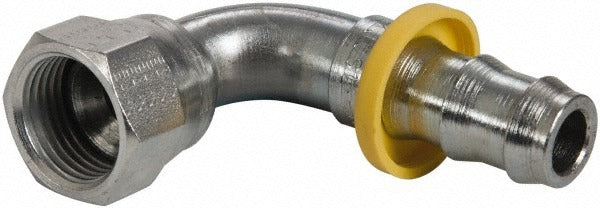

Parker 33982-8-8 Female Jic Swivel 90 Elbow Size 8 Hydraulic

Product Description

The PARKER 33982-8-8 is a short drop female JIC swivel 90-degree elbow fitting designed for hydraulic hose assemblies. Manufactured from steel, this fitting connects to 0.5-inch inside diameter (size 8) hydraulic hose via a threaded 3/4-16 JIC female swivel interface. The 90-degree elbow configuration allows routing of hydraulic lines in tight or confined spaces without sharp hose bends that can cause wear or flow restriction. It is installed by hydraulic system technicians and mobile equipment mechanics working on medium-pressure hydraulic circuits in industrial and mobile applications.

This fitting is designed for use with Parker Series 82 hydraulic hoses, specifically compatible with 801, 804, 821, 821FR, and 836 hose series in size 8. It is well suited for agricultural equipment, construction machinery, industrial hydraulic circuits, and other applications where a compact 90-degree hose-end connection is required. The short drop body keeps the overall assembly length minimal, which is useful in space-constrained installations.

Key Features

• Short drop body design for compact hose routing in confined hydraulic system spaces
• Female JIC swivel interface allows fitting rotation during installation to reduce hose twist
• 90-degree elbow angle suits directional hose routing without inducing excessive bend stress
• Steel construction provides durability for medium-pressure hydraulic service
• Thread size 3/4-16 JIC for secure, leak-resistant connection
• Compatible with Parker Series 82 hose family across multiple hose types

Compatibility

Designed for use with Parker 801, 804, 821, 821FR, and 836 hydraulic hoses in size 8 (0.5-inch inside diameter). Part of Parker Series 82 fitting line.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Depressurize and isolate the hydraulic circuit fully before disconnecting or assembling any fittings. JIC swivel fittings require proper torque to the fitting body per standard hydraulic assembly practices — refer to Parker assembly guidelines for the applicable torque range for this thread size. Inspect threads and seating surfaces for damage before assembly, and ensure hose ends are properly crimped or swaged before torquing the fitting into place.
