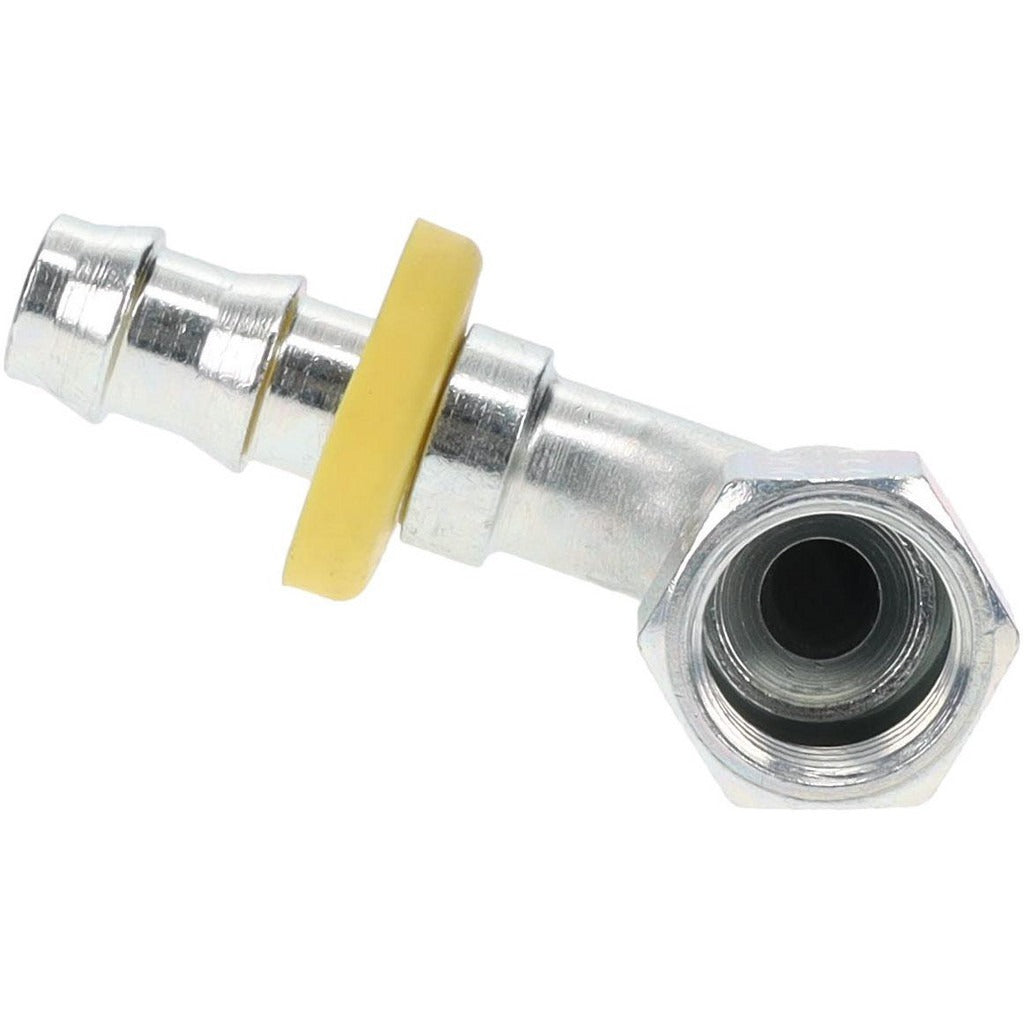

Parker 33982-6-6 Female Jic Swivel 90 Elbow 3/8 in Hose Fitting

Product Description

The PARKER 33982-6-6 is a short drop female JIC swivel 90-degree elbow fitting designed for use in hydraulic hose assemblies. Manufactured from steel, this Series 82 fitting accepts a 3/8 inch (0.375 inch) inside diameter hose and connects via a 9/16-18 threaded female JIC interface. The 90-degree elbow geometry reduces stress on hose routing in tight or angled installation environments. It is a threaded swivel design, allowing the fitting to rotate during assembly to achieve proper alignment without twisting the hose. Licensed hydraulic system technicians and fluid power specialists install this type of fitting in mobile and industrial hydraulic circuits.

This fitting is suited for hydraulic hose assembly work in mobile equipment, agricultural machinery, industrial machinery, and related fluid power applications where a 90-degree directional change is required at the hose termination point. The short drop profile keeps the assembly compact in confined spaces. The female JIC swivel interface provides a standard 37-degree flare seat connection commonly found across hydraulic valve banks, cylinders, and manifold ports.

Key Features

• Short drop female JIC swivel design allows fitting rotation during assembly to prevent hose twist
• 90-degree elbow shape redirects hose routing in tight or angled installations
• Steel construction provides durability in high-pressure hydraulic service
• 9/16-18 thread size with female JIC (37-degree flare) seating surface
• Compatible with Parker 801, 804, 821, 821FR, and 836 hose series
• Series 82 fitting line for consistent assembly pairing with matched Parker hose ends

Compatibility

Designed for use with Parker 801, 804, 821, 821FR, and 836 hydraulic hoses in 3/8 inch (Hose Size 6) inside diameter. Part of the Parker Series 82 fitting family.

Installation Notes

Installation should be performed by a qualified fluid power technician or hydraulic systems specialist. Depressurize and isolate the hydraulic system completely before disassembling any hose or fitting. Use appropriate jaw-style or hex wrenches sized to the fitting flats — do not use pipe wrenches on JIC fittings. Torque to the value specified in the Parker hydraulic fitting installation guidelines for the applicable thread size; do not rely on feel alone, as under- or over-torque can cause leaks or fitting damage.
