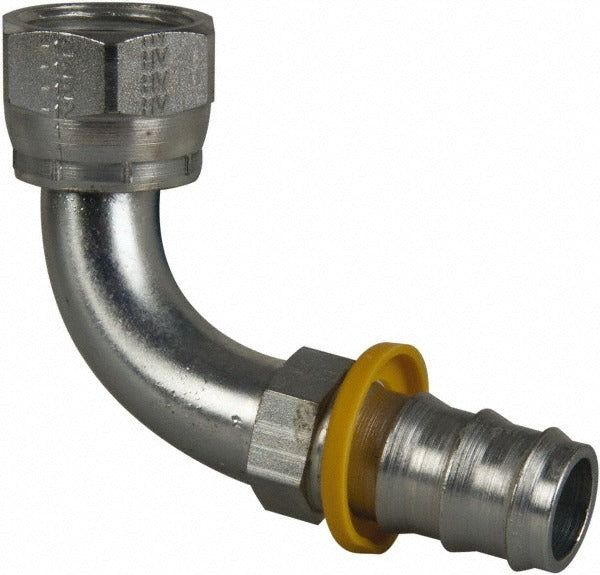

Parker 33982-12-12 Female Jic Swivel 90 Elbow Size 12

Product Description

The PARKER 33982-12-12 is a short drop female JIC swivel 90-degree elbow hydraulic hose fitting manufactured from steel. It is designed for use in hydraulic fluid power systems where a 90-degree directional change is required at the hose termination point. The fitting connects via a 1-1/16-12 threaded JIC interface and accommodates a hose inside diameter of 0.75 inches (19.10 mm), corresponding to a Size 12 hose designation. The swivel design allows rotational adjustment during installation, reducing torque transfer to the hose assembly. Licensed HVAC, hydraulic, and fluid power technicians install this fitting in mobile equipment, industrial machinery, and stationary hydraulic circuits.

This fitting is suited for hydraulic applications requiring a compact 90-degree elbow connection at the hose end. The short drop configuration keeps the fitting profile low, which is useful in tight or congested equipment bays. It is compatible with Parker Series 82 hose assemblies and is specified for use with 801, 804, 821, 821FR, and 836 hose series. Both OEM build and field repair applications are typical install scenarios for this part.

Key Features

• Short drop 90-degree elbow geometry for low-profile hose routing in confined spaces
• Female JIC swivel interface allows rotational alignment without twisting the hose
• 1-1/16-12 thread size for secure, leak-resistant threaded connection
• Steel construction for durability in high-pressure hydraulic environments
• Size 12 designation matches 0.75-inch ID hose assemblies
• Compatible with Parker Series 82 fittings and multiple Parker hose series

Compatibility

Rated for use with Parker 801, 804, 821, 821FR, and 836 hose series in Size 12 (0.75-inch ID). Belongs to Parker Series 82 fitting family.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist. Depressurize and lock out the hydraulic system completely before removing or installing any fittings. Use calibrated torque tooling appropriate for JIC swivel fittings and follow the applicable hydraulic system OEM service guidelines. Do not use thread sealant on JIC flare-type connections, as the metal-to-metal flare seat provides the primary seal.
