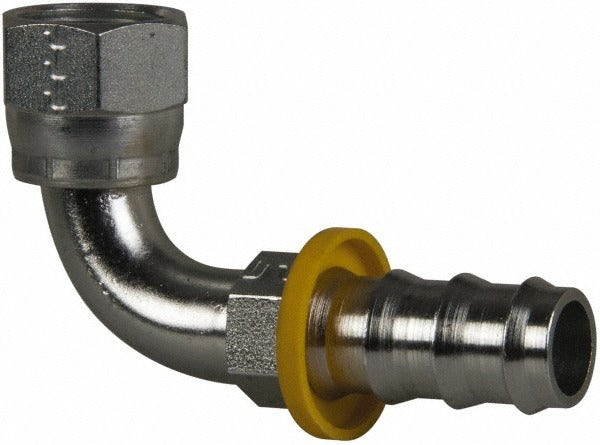

Parker 33982-10-10 Female Jic Swivel 90 Elbow 0.625 in Id

Product Description

The PARKER 33982-10-10 is a short drop female JIC swivel 90-degree elbow fitting designed for hydraulic hose assemblies. Machined from steel, this Series 82 fitting connects to hoses with a 0.625-inch (15.90 mm) inside diameter using a 7/8-14 inch threaded JIC female swivel end. The 90-degree elbow geometry allows hose routing in tight spaces where a straight fitting would conflict with adjacent components or structure. It is installed by hydraulic system technicians and mobile equipment mechanics during hose assembly, repair, and replacement work.

This fitting is rated for use with Parker 801, 804, 821, 821FR, and 836 hydraulic hose lines in size 10 applications. It suits mobile hydraulic circuits found on agricultural equipment, construction machinery, and industrial systems where a low-profile 90-degree hose drop is required at a port or bulkhead. The swivel design allows the hose to be positioned without twisting the hose body during final assembly and torquing.

Key Features

• Short drop 90-degree elbow geometry routes hose in confined or obstructed installations
• Female JIC swivel end eliminates hose twist during final tightening
• 0.625-inch (15.90 mm) ID matches size 10 hydraulic hose dash sizing
• 7/8-14 thread size provides positive sealing at the JIC 37-degree flare seat
• Steel construction for durability in high-pressure hydraulic service
• Complies with California Proposition 65 disclosure standards

Compatibility

Designed for use with Parker 801, 804, 821, 821FR, and 836 hydraulic hoses in size 10 (0.625-inch ID) configurations, Series 82 fitting line.

Installation Notes

Installation should be performed by a qualified hydraulic technician or mechanic. Depressurize and isolate the hydraulic circuit completely before disconnecting or assembling any fittings. Inspect the JIC flare seat and threads for damage before assembly, and use appropriate hydraulic fitting wrenches to achieve proper makeup without over-torquing. Ensure the hose is not twisted during routing before locking the swivel at final torque.
