Parker 33782-8-8 Hydraulic Hose Elbow 0.5 in Female Jic

Product Description

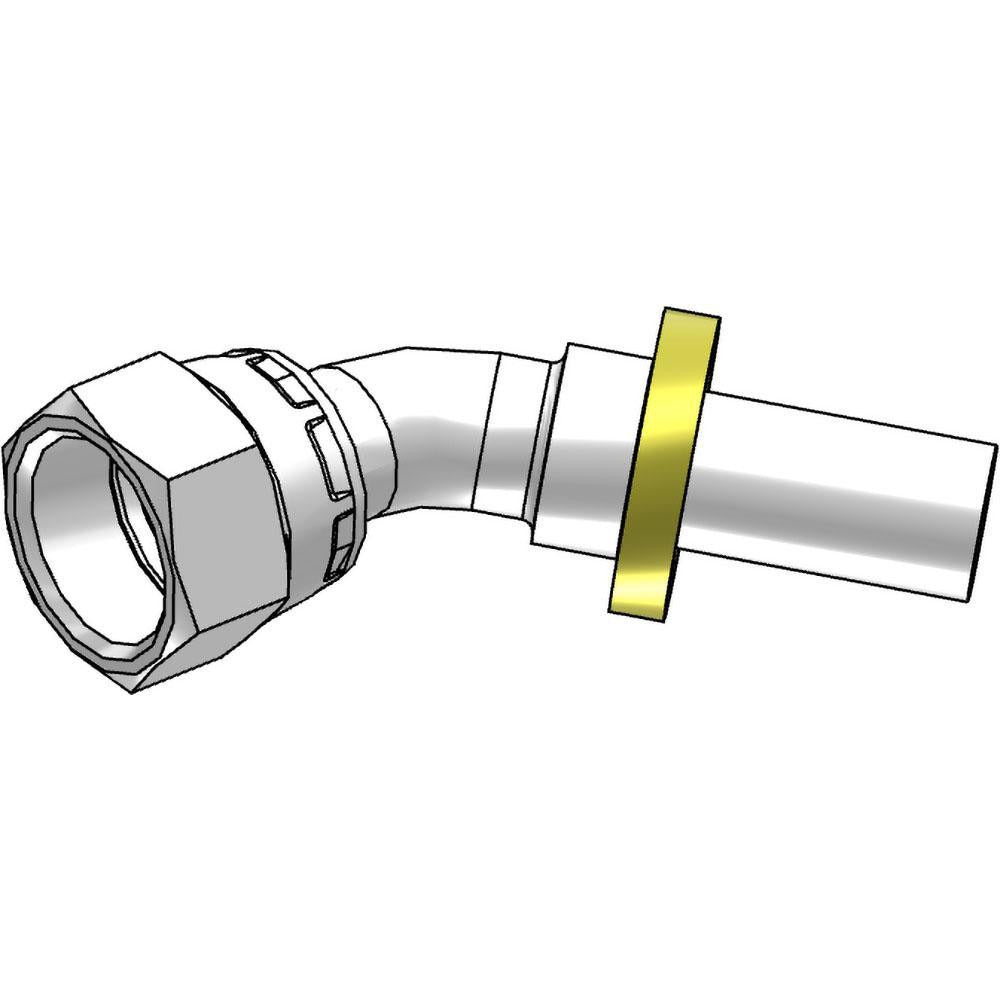

The PARKER 33782-8-8 is a 45-degree hydraulic hose elbow fitting designed for high-pressure fluid conveyance applications. Manufactured from steel with a threaded Female JIC connection, this fitting accepts hoses with a 0.5 inch inside diameter and a hose size designation of 8. The 3/4-16 thread size mates with standard JIC ports and adapters. It belongs to Parker Series 82, a widely used line of hydraulic hose end fittings found across industrial and mobile hydraulic systems. Licensed hydraulic technicians and fluid power specialists typically install this fitting during hose assembly or system maintenance.

This elbow fitting is suited for use in mobile equipment, industrial machinery, and any hydraulic circuit where a 45-degree directional change in hose routing is required. The angled geometry helps reduce stress on the hose at connection points and allows routing in tight or restricted spaces. Parker specifies this fitting for use with 801, 804, 821, 821FR, and 836 hose series. It is sold individually and ships as a single unit.

Key Features

• 45-degree elbow geometry eases hose routing in confined installations
• Female JIC threaded connection for secure, leak-resistant mating
• Steel construction for durability under hydraulic system pressures
• Hose inside diameter of 0.5 inches, hose size 8
• 3/4-16 thread size compatible with standard JIC ports
• Parker Series 82 fitting for consistent dimensional accuracy

Compatibility

Designed for use with Parker 801, 804, 821, 821FR, and 836 hydraulic hose series with a 0.5 inch inside diameter and hose size 8.

Installation Notes

Installation should be performed by a qualified fluid power technician or hydraulic system specialist. Depressurize and bleed down the hydraulic system fully before removing or installing any fittings. Use appropriate JIC assembly tooling and torque wrenches rated for hydraulic fittings; follow Parker assembly guidelines for JIC thread engagement. Inspect the mating port threads and seating surfaces for damage before installation to prevent leaks under pressure.
