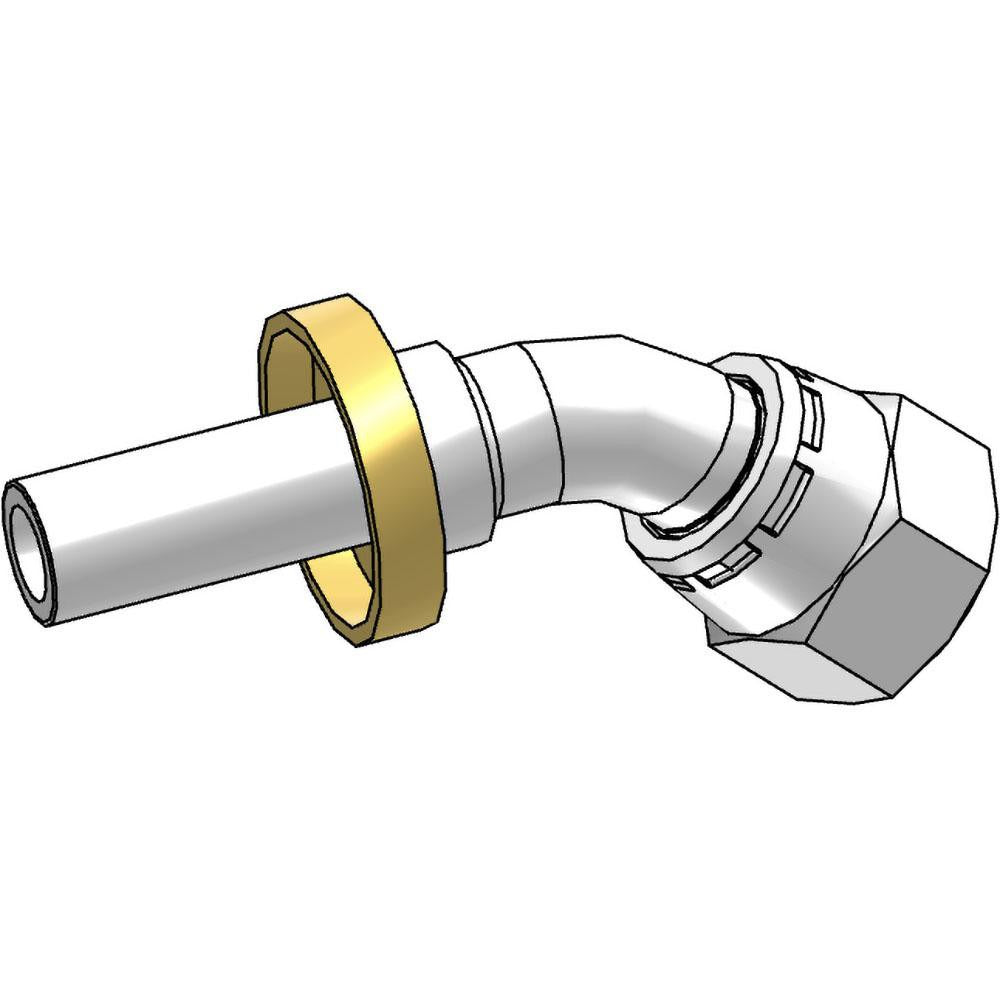

Parker 33782-6-6 Female Jic 37 Swivel Elbow Fitting 3/8 in

Product Description

The PARKER 33782-6-6 is a female JIC 37-degree swivel elbow fitting designed for use in hydraulic hose assemblies. Built from steel, it accepts a 3/8-inch (0.375-inch) inside diameter hose and connects via a 9/16-18 threaded interface. The 45-degree elbow shape allows routing in tight or angled plumbing runs where a straight fitting would not clear adjacent components. This is a Series 82 fitting sold individually, rated for the thread and dimensional standards associated with JIC 37-degree flare connections. Installation is handled by hydraulic technicians, millwrights, and mobile equipment mechanics working on fluid power systems.

This fitting is intended for hydraulic hose assemblies requiring a female JIC swivel termination with an angled body. The swivel design allows the hose end to be positioned without twisting the hose during final makeup, which is important in high-pressure hydraulic circuits. The 45-degree elbow body is suited for routing hoses around chassis components, hydraulic cylinders, and manifold ports where straight access is restricted. This fitting is part of the PARKER Series 82 line and is sized for hose size 6 applications.

Key Features

• Female JIC 37-degree swivel design allows hose positioning without inducing hose twist
• 45-degree elbow body for angled routing in restricted spaces
• Steel construction for durability in hydraulic fluid power environments
• 9/16-18 thread size conforms to standard JIC 37-degree flare dimensions
• Compatible with multiple PARKER hose series for broad application coverage
• Sold individually with no minimum order quantity beyond one unit

Compatibility

Designed for use with PARKER 801, 804, 821, 821FR, and 836 hoses with a hose inside diameter of 0.375 inches (9.50 mm), hose size 6.

Installation Notes

This fitting should be installed by a qualified hydraulic technician familiar with JIC 37-degree flare assembly procedures. Depressurize and bleed down the hydraulic system completely before removing or installing any fittings. Inspect the JIC flare seat and swivel threads for damage before assembly, and apply appropriate thread sealant practices per the system design specification. Torque to the system or fitting manufacturer's published specifications for 9/16-18 JIC connections — do not overtighten, as this can damage the flare seat.
