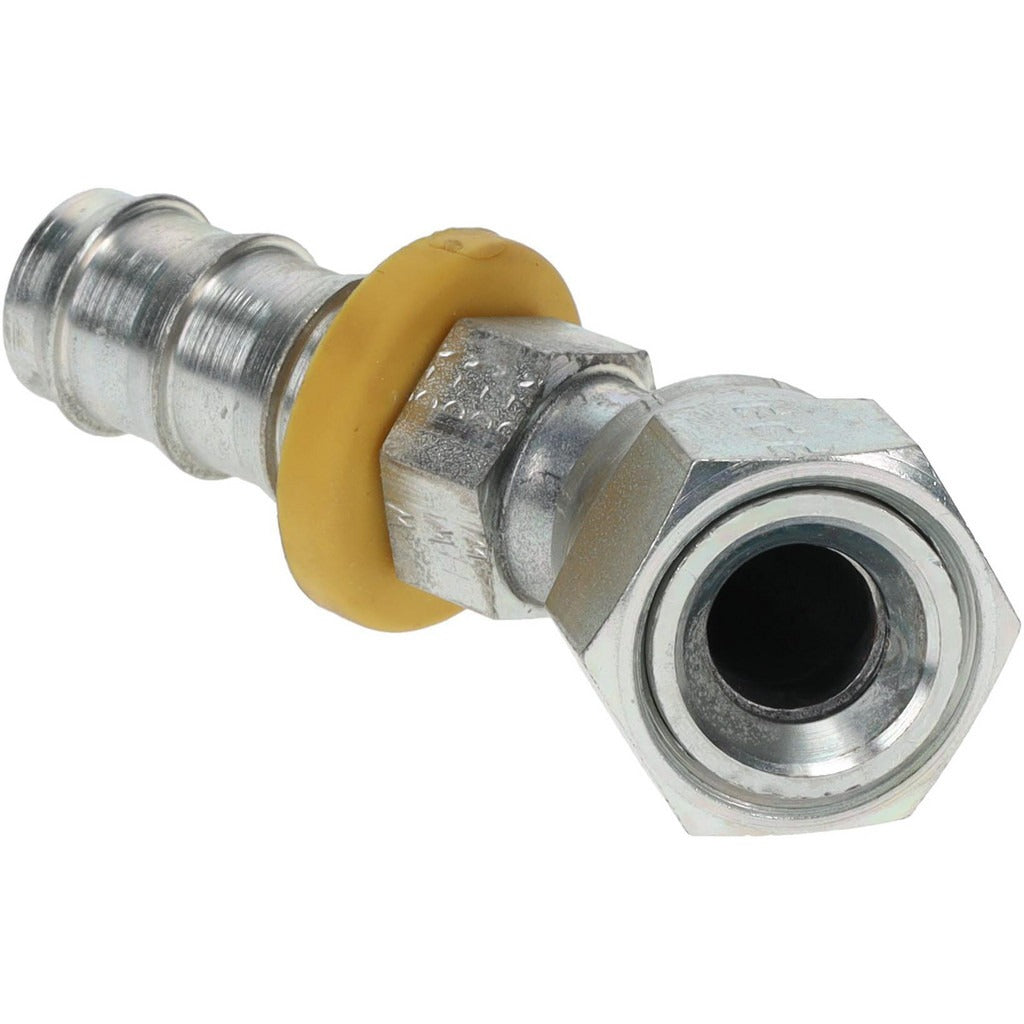

Parker 33782-10-10 Female Jic Swivel 45 Elbow Hose Fitting

Product Description

The PARKER 33782-10-10 is a short drop female JIC swivel 45-degree elbow fitting designed for use in hydraulic hose assemblies. Machined from steel, this fitting connects a size 10 hydraulic hose with a 0.625-inch (5/8-inch) inside diameter to a JIC-threaded port using a 7/8-14 thread. The 45-degree elbow geometry allows routing hose assemblies in tight spaces where a straight or 90-degree fitting would be impractical. The swivel feature permits hose positioning without twisting the hose body during installation. This fitting is installed by hydraulic technicians and equipment mechanics in mobile equipment, industrial machinery, and fluid power systems.

This fitting is suited for medium- and high-pressure hydraulic systems where hose routing requires a 45-degree angle change at the port connection. The short drop profile keeps the fitting close to the port face, reducing overall assembly length in congested equipment bays. It is compatible with Parker Series 82 fittings and is rated for use with Parker 801, 804, 821, 821FR, and 836 hose series. Typical applications include agricultural equipment, construction machinery, and industrial hydraulic circuits.

Key Features

• 45-degree swivel elbow allows precise hose routing in confined spaces
• Short drop design minimizes overall assembly length at the port connection
• Female JIC swivel end accepts 7/8-14 threaded JIC ports
• Steel construction provides durability in high-pressure hydraulic service
• Compatible with Parker 801, 804, 821, 821FR, and 836 hose series
• Swivel function allows hose positioning without torquing the hose during makeup

Compatibility

Designed for use with Parker 801, 804, 821, 821FR, and 836 hydraulic hose series. Fits size 10 hose with a 0.625-inch inside diameter. Part of Parker Series 82 fitting family.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Depressurize and bleed down the hydraulic system fully before disconnecting or installing any fittings. Use calibrated torque tooling and follow applicable fluid power standards for JIC 37-degree flare fittings when torquing to port. Inspect the JIC seat and swivel nut for damage or contamination before assembly to ensure a leak-free connection.
