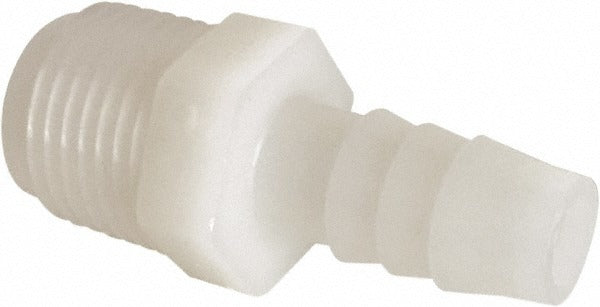

Parker 325HB-12-8N Barbed Tube Male Connector 3/4in Barb

Product Description

The PARKER 325HB-12-8N is a single-barb male tube connector designed for fluid transfer applications requiring a secure, leak-resistant connection between barbed tubing and NPT-threaded ports. Constructed from white nylon, this fitting accepts a 3/4 inch barb and threads into a 1/2 inch NPT female port. It carries FDA compliance and meets NSF/ANSI 51 standards, making it suitable for food-equipment and potable-water adjacent systems. Rated to 125 psi maximum working pressure, the fitting handles temperatures from -40 degrees F to 200 degrees F. Overall length measures 1.86 inches. Weight is 0.01 pounds.

This connector is used in residential and light commercial plumbing, HVAC condensate lines, food-service equipment, and fluid-handling assemblies where a barbed fitting must transition to a threaded port. The 3/4 inch barb accepts tubing with a 3/4 inch inside diameter and 0.8 inch outside diameter. Its nylon construction resists corrosion and is well suited for low-pressure water and compatible fluid systems. Licensed plumbers and HVAC technicians commonly install this fitting during equipment installation, maintenance, or repair.

Key Features

• Single-barb design provides a secure grip on 3/4 inch ID tubing
• 1/2 inch NPT male thread for direct connection to standard female NPT ports
• Nylon construction offers corrosion resistance and lightweight handling
• FDA compliant and NSF/ANSI 51 rated for food-equipment and potable-water applications
• Rated to 125 psi maximum working pressure
• Operating temperature range of -40 degrees F to 200 degrees F

Compatibility

Designed as an OEM-style replacement or new-installation fitting for fluid-transfer systems using 3/4 inch ID barbed tubing and 1/2 inch NPT threaded connections in plumbing, HVAC, and food-service equipment.

Installation Notes

This fitting is installed by licensed plumbers or HVAC technicians. Shut off fluid supply and relieve system pressure before removing or installing any fitting. Apply thread sealant or PTFE tape to the NPT threads in accordance with local plumbing codes before tightening. Secure the barbed end with an appropriate clamp to ensure a leak-free connection; do not over-tighten the NPT thread into the mating port.
