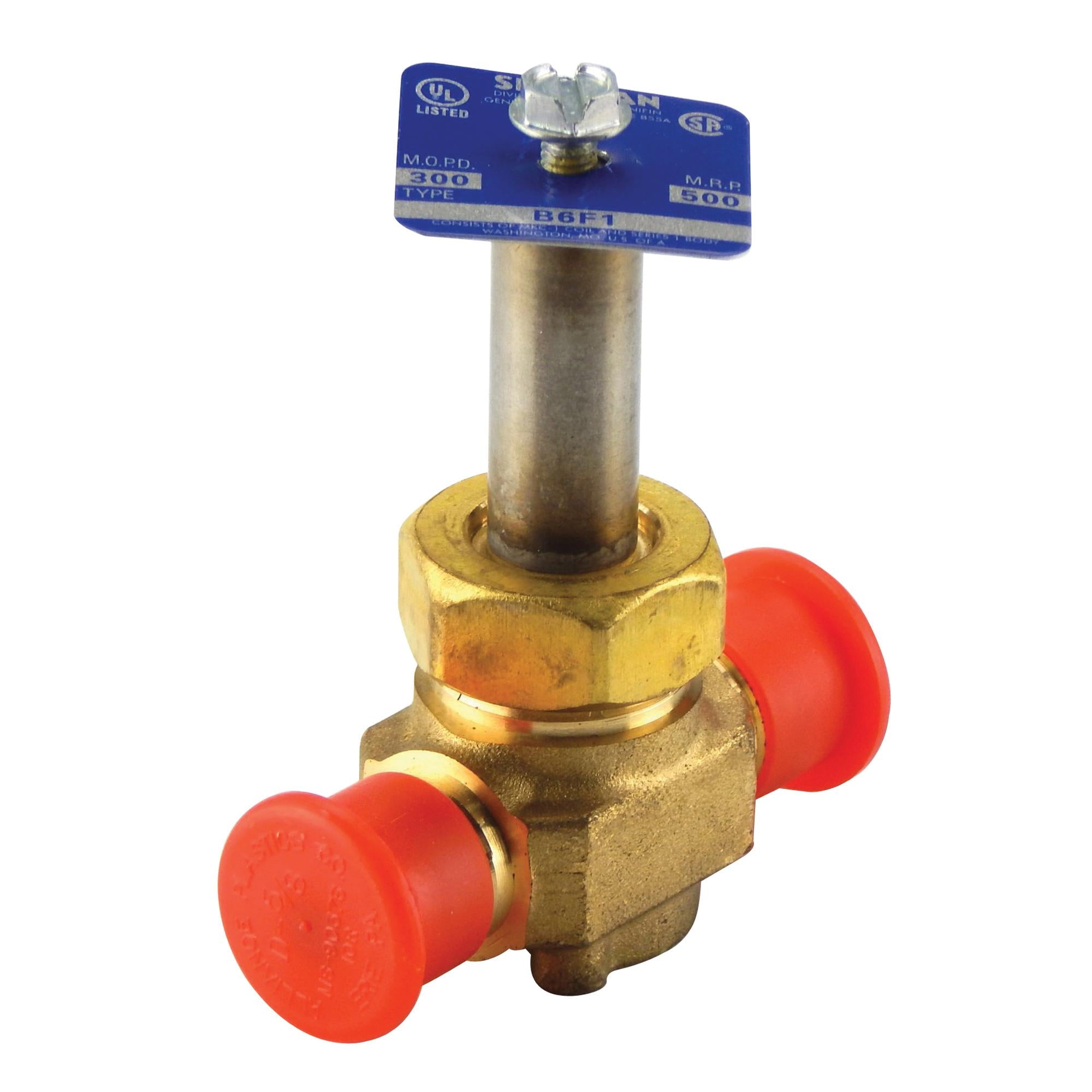

Parker 3249-00 Sporlan B6F1 Solenoid Valve

Product Description

The Parker 3249-00 Sporlan solenoid valve serves a critical role in refrigeration and air conditioning systems. This valve operates in a normally closed position and opens when the coil is energized. It closes again when de-energized, ensuring efficient control of refrigerant flow. Constructed from forged brass, this valve is durable and reliable for various applications.

• Includes a three-eighths inch SAE flare connection.
• Designed to meet low pressure differential requirements.
• Features synthetic material for tight sealing.

Product Highlights

This solenoid valve is perfect for HVAC systems, providing stable operation and compatibility with refrigerants such as R-22, R-134A, and R-404A.

Product Information

Standard Information

• Manufacturer: Sporlan
• Brand: Parker Sporlan

Technical Specifications

• Part Number: 3249-00
• Connection Size: 3/8 inch
• Connection Type: SAE Flare
• Valve Type: Normally Closed
• Body Material: Forged Brass
• Coil Insulation Class: F
• Coil Type: MKC-1
• Configuration: NC
• Number of Ports/Ways: 2-Way
• Orifice Size: 3/16 inch
• Pressure Rating: 500 psi Working, 300 psi AC, 175 psi DC Differential
• Seal Material: Synthetic-Coated Metal
• Seat Material: Synthetic
• Stem Material: Stainless Steel
• Mounting Orientation: Horizontal or Vertical
• Application: Refrigeration and Air Conditioning
