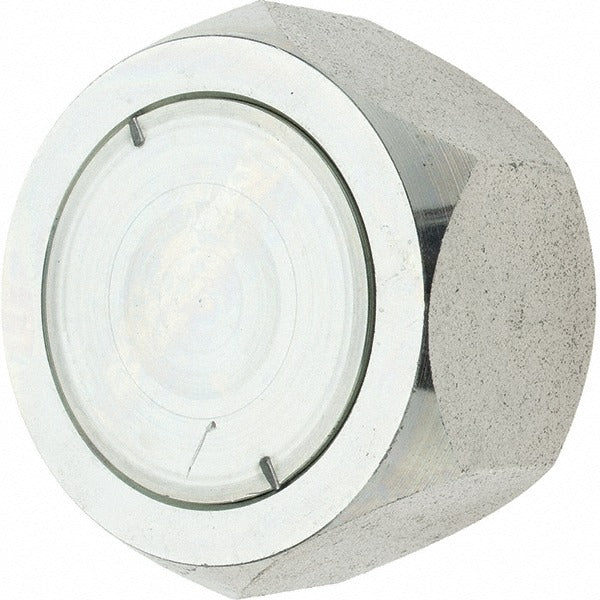

Parker 32 Fntx-s Steel Flared Tube Cap 2in 37 Degree

Product Description

The PARKER 32 FNTX-S is a steel flared tube cap designed to seal the open end of a flared hydraulic or fluid-system line. It accepts a 2-inch tube OD with a 37-degree flare angle, forming a leak-resistant metal-to-metal closure. Rated to 2000 psi maximum working pressure, this cap is suited for high-pressure hydraulic circuits where a temporary or permanent line termination is required. Installation is performed by licensed hydraulic technicians, pipefitters, or qualified fluid-power mechanics working on industrial and mobile hydraulic systems.

This cap is used to terminate or cap off flared tube ends in hydraulic power units, mobile equipment, industrial machinery, and fluid-transfer systems. The 37-degree JIC flare configuration is a widely used standard in hydraulic plumbing, making this fitting applicable across a broad range of tube-line assemblies where a 2-inch OD flared termination point is needed. It is suited for both new installations and field service work requiring a line to be capped during maintenance or system reconfiguration.

Key Features

• 37-degree flare angle provides a metal-to-metal seal at the tube end
• 2-inch tube OD fitment for large-bore hydraulic and fluid lines
• 2000 psi maximum dynamic working pressure rating
• Steel construction for durability in high-pressure environments
• Flare end connection type for secure, leak-resistant termination

Compatibility

Designed as an OEM-style replacement flared tube cap for 2-inch OD, 37-degree flare tube lines in hydraulic and fluid-power systems.

Installation Notes

Installation should be performed by a qualified pipefitter, hydraulic technician, or fluid-power mechanic. Depressurize and isolate the hydraulic circuit completely before removing or capping any line. Use appropriate flare wrenches to avoid distorting the flare seat; do not overtighten. Verify the system is leak-free before returning to service.
