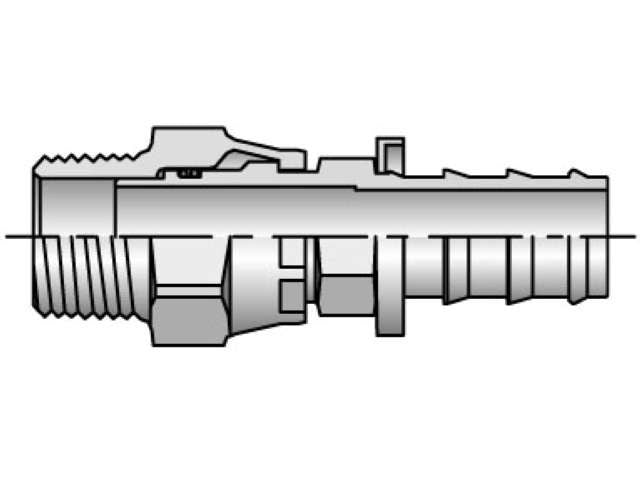

Parker 31382-4-4 82 Series Push-Lok Barbed Male NPTF Pipe - Swivel - Straight

Product Description

Parker 31382-4-4 is a part of the 82 Series Push-Lok fittings. This fitting is designed as a 1-piece field attachable push-on style that enables quick assembly without the need for special tools. The assembly of the 82 Series No-Skive hose and fittings does not require the use of clamps.

• Field attachable design for ease of use
• Compatible with various Parker hoses including 801 and 836
• Available in steel or brass with zinc dichromate plating

Product Highlights

This fitting offers a reliable connection for pneumatic applications, allowing for a secure fit with minimal effort.

Product Information

Standard Information

• Manufacturer: Parker
• Part Number: 31382-4-4

Technical Specifications

• End 1: 1/4 Inch
• Inner Diameter: 0.25 Inch
• Material: Steel
• Trade Name: Push-Lok
• Series: 82
• Configuration Type: Male NPTF Pipe - Swivel - Straight
• Hose Connection Type: Barbed
• Parker Group: Fluid Connector
