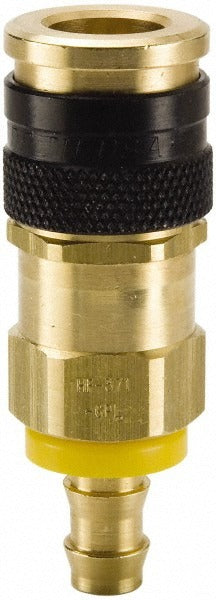

Parker 30KATP13SPN Pneumatic Hose Coupling 3/8 in Brass

Product Description

The PARKER 30KATP13SPN is a brass pneumatic hose coupling designed for industrial compressed-air and fluid-transfer systems. It features a Push-Lok hose barb connection with a 3/8-inch body diameter and accepts hose with a 1/2-inch inside diameter. Rated to 300 psi maximum working pressure and a maximum temperature of 212 degrees F, this coupler handles demanding service conditions in both shop and field applications. The Industrial Interchange design allows it to mate with standard Industrial-type pneumatic fittings common across tools, compressors, and air lines. Licensed HVAC techs, plumbers, and industrial service professionals install this part when connecting pneumatic hose assemblies.

The 30KATP13SPN fits into the Parker 30 Series and is suited for pneumatic tool connections, air compressor outlet lines, and general-purpose compressed-air distribution in both light commercial and industrial settings. The Push-Lok hose barb end simplifies hose attachment without the need for clamps on compatible Parker Push-Lok hose, reducing installation time. Its brass construction makes it appropriate for air, water, and mild fluid service where corrosion resistance is a priority.

Key Features

• 3/8-inch body diameter with 1/2-inch hose inside diameter compatibility
• Push-Lok hose barb thread type for tool-free hose retention on compatible hose
• 300 psi maximum working pressure for demanding pneumatic service
• Operating temperature range: -4 degrees F to 212 degrees F
• Brass construction for corrosion resistance in air and mild fluid applications
• Industrial Interchange coupling type for broad tool and fitting compatibility

Compatibility

Part of the Parker 30 Series, designed for use with Industrial Interchange pneumatic fittings and compatible with Parker Push-Lok hose with a 1/2-inch inside diameter. No additional specific model compatibility data was provided in the product input.

Installation Notes

Installation is typically performed by a licensed plumber, pipefitter, or qualified mechanical technician. Depressurize and isolate the air line fully before disconnecting or installing any pneumatic coupling. Verify hose inside diameter matches the 1/2-inch barb specification before seating the hose. Inspect the coupling body and hose end for damage before returning the system to service pressure.
