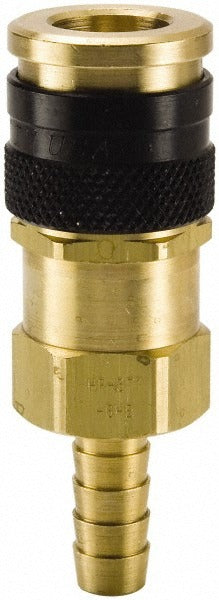

Parker 30KATF13SPN Pneumatic Hose Coupling 3/8 in

Product Description

The PARKER 30KATF13SPN is a brass pneumatic hose coupler from the 30 Series line, designed for industrial interchange applications in compressed air and pneumatic fluid systems. It features a hose barb connection with a 3/8-inch body diameter and accepts a 1/2-inch inside diameter hose. Rated for a maximum working pressure of 300 psi and a temperature range of -4 degrees F to 212 degrees F, this coupler is built for reliable performance in demanding shop, industrial, and mechanical service environments. At 0.264 pounds and 3.02 inches in overall length, it is a compact, direct-fit replacement or new-installation component installed by HVAC technicians, pipefitters, and general mechanical trades.

The 30KATF13SPN is suited for industrial interchange pneumatic systems where a hose barb-style coupler is required. It connects directly to 1/2-inch ID hose and mates with standard industrial interchange pneumatic fittings. Typical applications include air compressor lines, pneumatic tool supply circuits, and shop air distribution systems in both commercial and light industrial settings. The brass construction offers corrosion resistance in moist or oily air environments common in mechanical service bays and production facilities.

Key Features

• Brass construction provides corrosion resistance in wet and oily compressed air environments
• Industrial interchange coupling type for broad cross-compatibility with standard shop air fittings
• Hose barb connection style for secure, clamp-retained attachment to 1/2-inch ID hose
• Rated to 300 psi maximum working pressure for demanding pneumatic service
• Wide temperature range of -4 degrees F to 212 degrees F suits most shop and industrial conditions
• Compact 3.02-inch overall length fits confined plumbing and panel installations

Compatibility

Designed as an OEM-style replacement or new-installation coupler for industrial interchange pneumatic systems accepting a 3/8-inch body diameter hose barb coupler with 1/2-inch ID hose.

Installation Notes

Installation is typically performed by pipefitters, HVAC technicians, or qualified mechanical trades familiar with pneumatic systems. Always depressurize and lock out the air supply before removing or installing any pneumatic coupler. Secure the hose barb connection with an appropriately sized hose clamp rated for the system working pressure. Verify hose inside diameter matches the 1/2-inch barb before final assembly to prevent air leaks or hose pullout under pressure.
