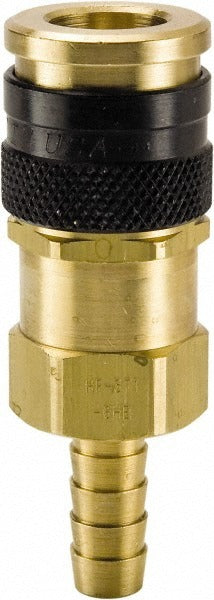

Parker 30KATF10SPN Pneumatic Hose Coupling 3/8 in

Product Description

The PARKER 30KATF10SPN is a brass pneumatic hose coupling designed for use in compressed air and pneumatic fluid systems. It features a hose barb connection thread type and an industrial interchange configuration, making it compatible with standard industrial quick-disconnect setups. The body diameter is 3/8 inches with a matching 3/8 inch hose inside diameter. Rated for a maximum working pressure of 300 psi and a temperature range of -4 degrees F to 212 degrees F, this coupler is built for reliable service in demanding shop and field environments. It is installed by HVAC technicians, plumbers, and industrial mechanics working with air-powered tools and pneumatic control systems.

This coupler fits standard 3/8 inch ID hose and is suited for both light industrial and commercial pneumatic applications. The industrial interchange design allows connection with a broad range of matching quick-disconnect plugs and bodies following the industrial interchange standard. Typical install scenarios include compressor drop lines, pneumatic tool connections, and air supply manifolds in commercial and light industrial settings. The 30 Series designation indicates Parker's standardized coupler line for general-purpose pneumatic service.

Key Features

• Brass construction for corrosion resistance in pneumatic and air-line service
• Industrial interchange coupling type for broad quick-disconnect compatibility
• Hose barb connection for secure, tool-free hose attachment
• 300 psi maximum working pressure rating
• Temperature range from -4 degrees F to 212 degrees F
• 3/8 inch body diameter and 3/8 inch hose inside diameter for matched flow path

Compatibility

Designed as an OEM-style replacement coupler for industrial interchange pneumatic quick-disconnect systems using 3/8 inch ID hose with a hose barb connection. Compatible with industrial interchange standard plugs and bodies in the 30 Series.

Installation Notes

Installation is performed by qualified mechanics or technicians. Depressurize and bleed the air line completely before disconnecting or installing any pneumatic fitting. Ensure the hose barb is fully seated and the hose is secured with an appropriate clamp rated for the working pressure. Verify all connections meet applicable shop air system codes and manufacturer torque recommendations for brass fittings before returning the system to service.
