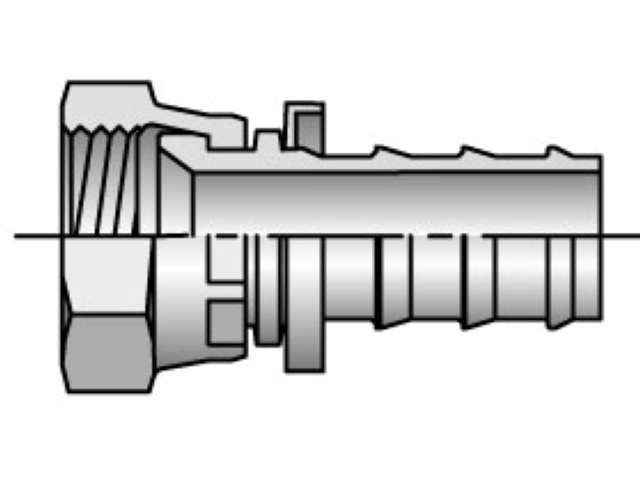

Parker 30682-8-8B 82 Series 30682 Push-Lok Barbed Female JIC 37° - Swivel - Straight

Product Description

The Parker 30682-8-8B is a part of the 82 Series Push-Lok fittings. This fitting is designed for easy assembly without the need for special tools. It features a barbed connection and allows for quick and reliable hose installation. The Push-Lok design eliminates the requirement for clamps during assembly, simplifying the process for technicians.

• Field attachable and reusable design
• Compatible with various Parker hoses such as 801, 804, and 821FR
• Constructed from durable brass or steel with zinc dichromate plating

Product Highlights

Designed for use in fluid transfer applications, this fitting is highly functional and reliable for various industrial uses.

Product Information

Standard Information

• Manufacturer: Parker
• Part Number: 30682-8-8B

Technical Specifications

• End 1: 1/2 Inch
• Inner Diameter: 0.5 Inch
• Material: Brass
• Trade Name: Push-Lok
• Configuration Type: Female JIC 37° - Swivel - Straight
• Hose Connection Type: Barbed
• Parker Division: Hose Products
