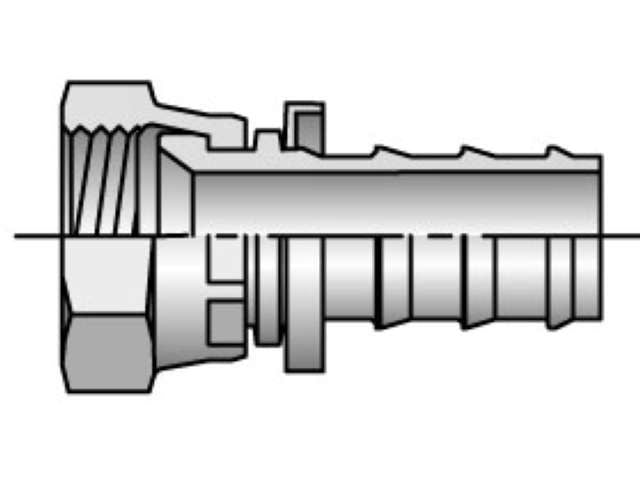

Parker 30682-12-12 82 Series Push-Lok Barbed Female JIC 37° - Swivel - Straight

Product Description

Parker 30682-12-12 is part of the 82 Series Push-Lok fittings. It is a one-piece field attachable fitting designed for quick assembly without the need for special tools. This fitting allows users to avoid clamps when connecting to 801, 804, 821, 821FR, 831, and 836 hoses, specifically the Parker Pneumatic Push-Lok hoses.

• Field attachable design for easy assembly
• No special tools required for installation
• Compatible with various hose types including 801 and 804

Product Highlights

This fitting is versatile and suitable for numerous applications requiring reliable and efficient hose connections.

Product Information

Standard Information

• Manufacturer: Parker
• Part Number: 30682-12-12

Technical Specifications

• End 1: 3/4 Inch
• Inner Diameter: 0.75 Inch
• Material: Steel
• Trade Name: Push-Lok
• Series: 82
• Configuration Type: Female JIC 37° - Swivel - Straight
• Hose Connection Type: Barbed
• Parker Division: Hose Products
