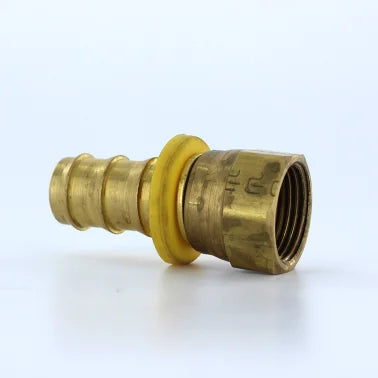

Parker 30682-10-10B 82 Series Push-Lok Barbed Female JIC 37° - Swivel - Straight

Product Description

Parker 30682-10-10B is a part of the 82 Series Push-Lok fittings. This fitting features a one-piece field attachable design allowing for quick assembly without the need for special tools. The assembly process does not require a clamp, making it ideal for various applications.

• Compatible with Parker Push-Lok hoses including 801, 804, 821, 821FR, 831, and 836.
• Available in brass or steel with zinc dichromate plating.
• Designed for easy reuse in field conditions.

Product Highlights

This fitting is built for use in both hydraulic and pneumatic systems, making it versatile for trade professionals in various industries.

Product Information

Standard Information

• Manufacturer: Parker
• Part Number: 30682-10-10B

Technical Specifications

• End 1: 5/8 Inch
• Inner Diameter: 0.625 Inch
• Material: Brass
• Trade Name: Push-Lok
• Series: 82
• Configuration Type: Female JIC 37° - Swivel - Straight
• Hose Connection Type: Barbed
• Parker Group: Fluid Connector
