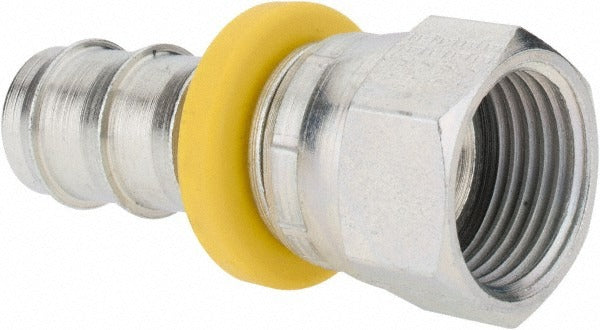

Parker 30682-10-10 Female Jic 37 Deg Swivel Fitting

Product Description

The PARKER 30682-10-10 is a straight female JIC 37-degree swivel fitting designed for hydraulic hose assemblies. It connects hose ends to hydraulic system ports using a 7/8-14 inch thread and is compatible with 5/8-inch (10 mm hose size) inside diameter hose. Constructed from steel, it delivers the durability and pressure tolerance demanded by hydraulic plumbing applications. The swivel design allows for easier hose routing and reduces torque stress on the hose during assembly. With an overall length of 2.54 inches, it is a compact, direct-connect solution for high-pressure hydraulic lines in industrial and mobile equipment environments.

This fitting is intended for use in hydraulic hose assembly and repair, typically in industrial machinery, mobile equipment, and fluid power systems. It is installed by hydraulic technicians and equipment mechanics who require a reliable threaded female JIC connection at the hose end. The Series 82 designation and straight shape make it a standard choice for inline routing applications where space and alignment allow for a direct connection.

Key Features

• Female JIC 37-degree swivel seat provides a leak-resistant metal-to-metal cone seal
• 7/8-14 inch thread size for positive engagement with male JIC ports
• Straight configuration simplifies inline hose-to-port connections
• Steel construction for high-pressure hydraulic service durability
• Swivel body reduces hose twist and assembly stress during installation
• Overall length of 2.54 inches keeps assembly compact

Compatibility

Designed for use with PARKER 801, 804, 821, 821FR, and 836 hydraulic hoses. Fits 5/8-inch (0.625 inch) hose inside diameter in the Series 82 hose fitting family.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Depressurize and bleed the hydraulic system fully before removing or installing any fittings. Use appropriate thread sealant or verify dry-seal compatibility per system requirements before torquing. Do not over-tighten threaded JIC connections, as metal-to-metal seats can be damaged by excessive force.
