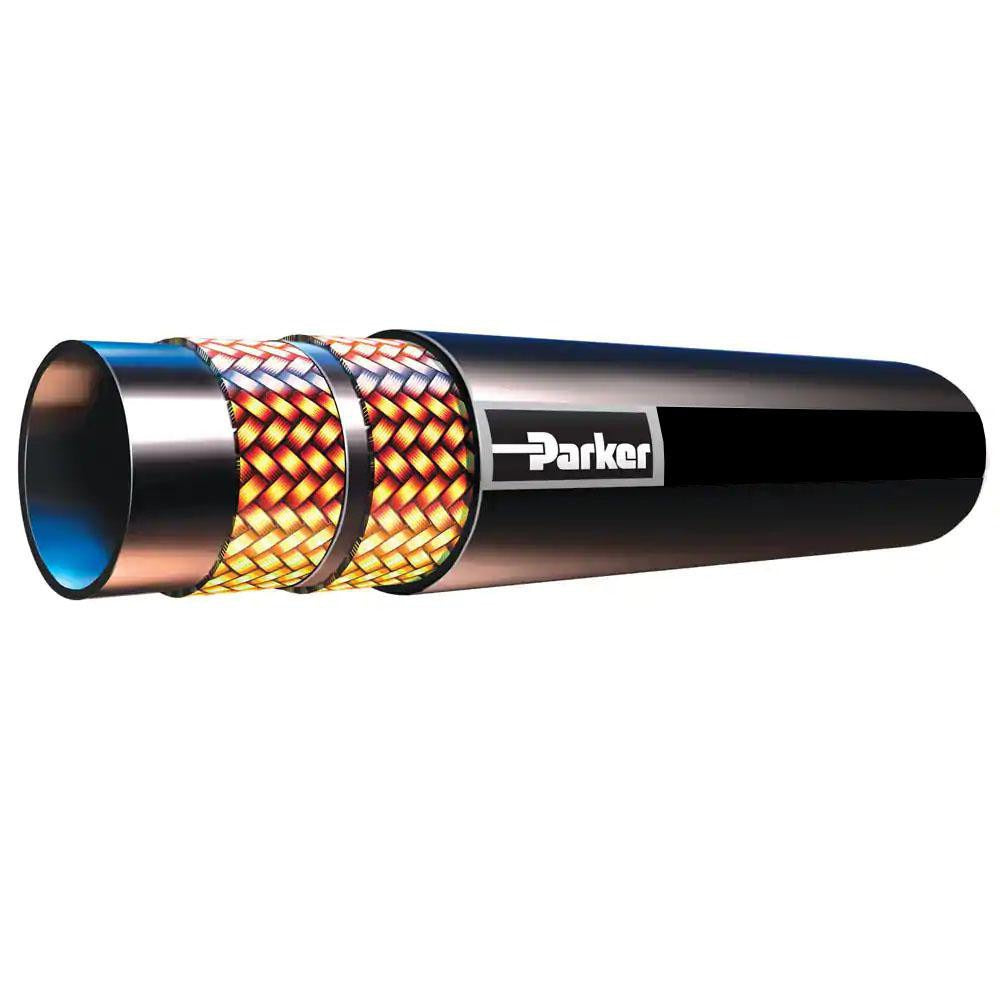

Parker 302-20 Hydraulic Hose 1-1/4 in Id 1800 Psi

Product Description

The PARKER 302-20 is a high-pressure hydraulic hose designed for demanding fluid-power applications in mobile and industrial equipment. Built with a 1-1/4 inch inner diameter and a rated working pressure of 1,800 psi, this hose is constructed from synthetic rubber and meets multiple international and domestic standards including EN 853 TYPE 2SN, ISO 1436-1 TYPE 2SN, SAE J517 100R2AT, and SAE J1942. It is sold in 1-foot increments with a 5-foot minimum cut length and comes as a 55-foot total coil. Licensed hydraulic technicians and industrial maintenance professionals are the typical installers.

This hose is suited for hydraulic systems operating across a wide temperature range, from -40 degrees F to 250 degrees F. Typical applications include mobile hydraulic circuits on construction, agricultural, and material-handling equipment, as well as stationary industrial power units. The -20 hose size designation corresponds to a 1-1/4 inch ID, making it appropriate for high-flow, moderate-to-high pressure hydraulic lines where flexible routing is required.

Key Features

• 1-1/4 inch inner diameter, -20 hose size designation
• 1,800 psi working pressure rating
• Synthetic rubber construction for oil and fluid resistance
• Operating temperature range: -40 degrees F to 250 degrees F
• Meets EN 853 TYPE 2SN, ISO 1436-1 TYPE 2SN, SAE J517 100R2AT, and SAE J1942 standards
• Sold in 1-foot increments; 5-foot minimum cut length per order

Compatibility

Designed as an OEM-style replacement or new-installation hydraulic hose for fluid-power systems requiring a -20 hose size at 1,800 psi working pressure, conforming to SAE J517 100R2AT and EN 853 TYPE 2SN specifications.

Installation Notes

Hydraulic hose installation should be performed by qualified hydraulic technicians. Always depressurize and de-energize the hydraulic system completely before removing or installing hose assemblies. Use proper hose-cutting and crimping equipment rated for the hose series to ensure leak-free fittings. Inspect the completed assembly for correct routing, minimum bend radius compliance, and secure fitting engagement before returning the system to service.
