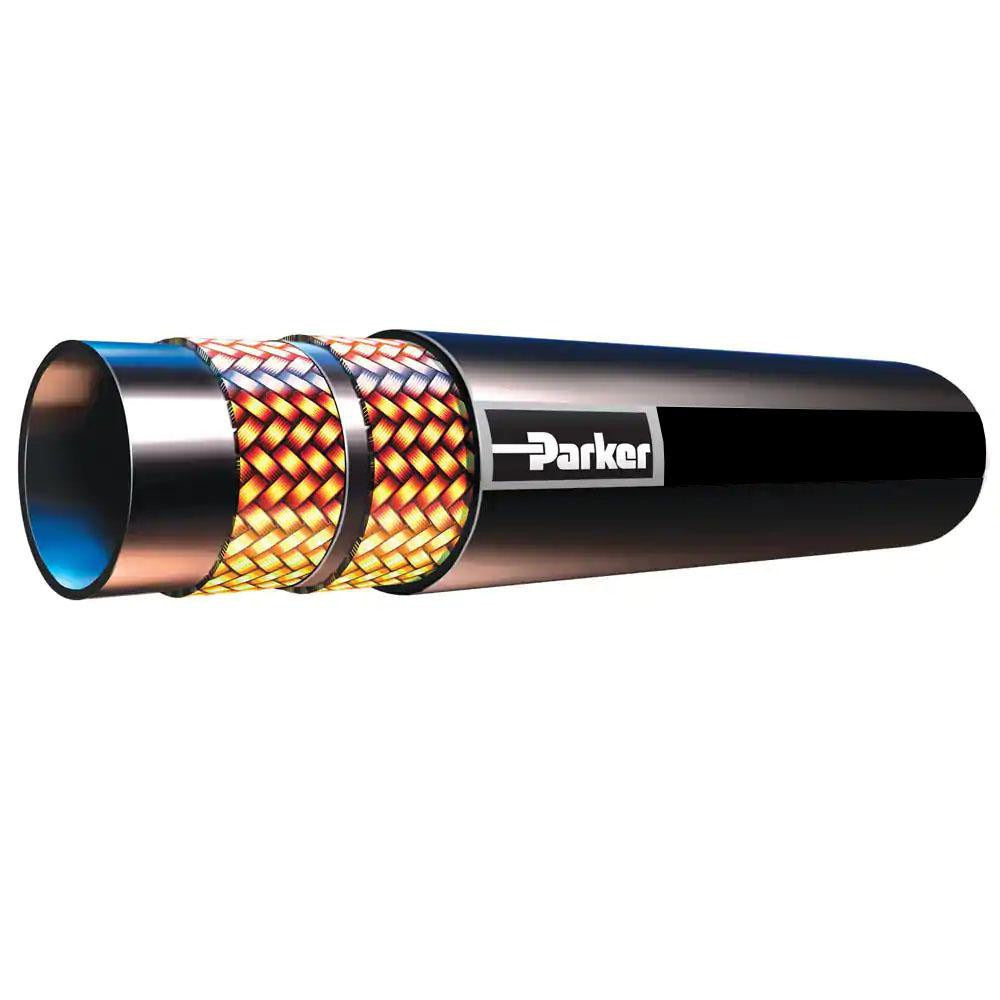

Parker 302-16-RL Hydraulic Hose 1 in Id 2400 Psi Sae 100R2AT

Product Description

The PARKER 302-16-RL is a -16 hose size hydraulic hose with a 1 inch inner diameter and a 2,400 psi working pressure rating. Built with a synthetic rubber construction, it meets EN 853 TYPE 2SN, ISO 1436-1 TYPE 2SN, SAE J1942, and SAE J517 100R2AT standards. This hose is rated for temperatures from -40 degrees F to 250 degrees F, making it suitable for a wide range of hydraulic fluid power applications. It is priced and cut in 1-foot increments with a 5-foot minimum cut length per order. Each coil contains 125 feet total. Licensed hydraulic technicians and industrial service professionals handle installation and routing of this hose in fluid power systems.

This hose is used in medium- to high-pressure hydraulic circuits found in mobile equipment, industrial machinery, and construction or agricultural equipment. Its dual-wire braid reinforcement construction, per the 2SN and 100R2AT classifications, suits it for pressure lines, return lines, and working circuits where flexibility and pressure integrity are both required. The -16 hose size designation corresponds to a 1 inch inner diameter, which is a common size in mid-range flow hydraulic systems.

Key Features

• 1 inch inner diameter, -16 hose size designation
• 2,400 psi working pressure rating
• Synthetic rubber inner tube and outer cover construction
• Temperature range: -40 degrees F to 250 degrees F
• Meets EN 853 TYPE 2SN, ISO 1436-1 TYPE 2SN, SAE J1942, and SAE J517 100R2AT standards
• Sold in 1-foot increments with a 5-foot minimum cut length; 125-foot total coil length

Compatibility

Designed as an OEM-style replacement or new-installation hydraulic hose for medium- to high-pressure fluid power systems requiring a -16 hose size with SAE 100R2AT and EN 853 2SN compliance.

Installation Notes

Installation should be performed by a qualified hydraulic technician familiar with fluid power system safety practices. Depressurize and isolate the hydraulic circuit completely before cutting, routing, or connecting this hose. Use proper hose cutting tools to ensure a clean, square cut before attaching fittings. Verify that all fittings and adapters are rated at or above the hose working pressure before returning the system to service.
