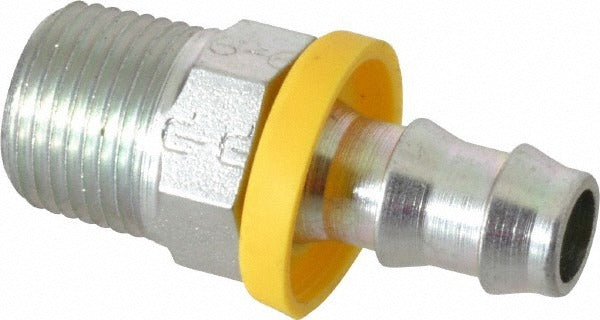

Parker 30182-6-6 Male Nptf Pipe Rigid Fitting 0.375 in

Product Description

The PARKER 30182-6-6 is a male NPTF pipe rigid fitting designed for use in hydraulic hose assemblies. Machined from steel with a straight shape and threaded connection, this Series 82 fitting accepts hoses with a 0.375 inch (9.50 mm) inside diameter and uses a 3/8-18 NPTF thread for a leak-resistant, pressure-rated seal. Overall length is 1.78 inches (45.00 mm). It is installed by hydraulic system technicians and mechanics in fluid power applications where a permanent, rigid end connection is required on compatible Parker hose lines.

This fitting is suited for use in industrial and mobile hydraulic systems where reliable hose termination at a pipe-threaded port is required. Typical installations include hydraulic power units, mobile equipment, and fluid transfer lines operating with Parker 801, 804, 821, 821FR, and 836 hoses. The straight configuration makes it appropriate for inline connections where routing does not require an angled adapter.

Key Features

• Male NPTF thread provides a dry-seal, pressure-rated connection without sealant tape in many applications
• 0.375 inch (9.50 mm) hose inside diameter matches standard size 6 hose assemblies
• 3/8-18 thread size for direct installation into standard NPT or NPTF female ports
• Straight rigid design maintains hose routing alignment and reduces stress at the fitting junction
• Steel construction suitable for hydraulic fluid service in demanding industrial and mobile environments
• Compact 1.78 inch overall length minimizes space requirements in tight assemblies

Compatibility

Designed for use with Parker 801, 804, 821, 821FR, and 836 hydraulic hoses in size 6 (3/8 inch hose diameter). Part of Parker Series 82 fittings.

Installation Notes

Installation should be performed by a qualified hydraulic technician or mechanic familiar with fluid power systems. Depressurize and bleed the hydraulic system fully before removing or installing any fittings. NPTF threads are designed to form a metal-to-metal seal; inspect threads for damage before assembly and follow the fitting manufacturer's recommended assembly procedure. Ensure hose is properly crimped or swaged to the fitting using approved tooling rated for the hose and fitting series.
