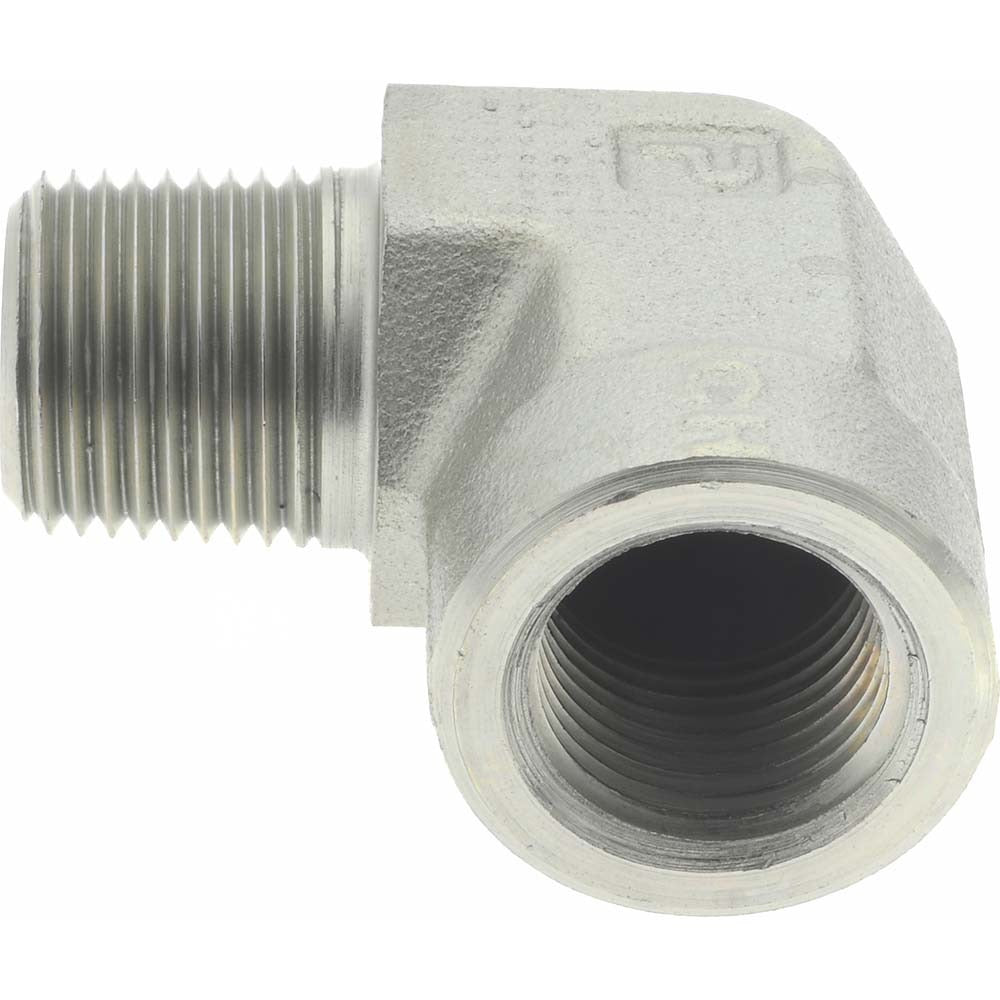

Parker 3/8 Cd-s 90 Deg Street Elbow Mnptf X Fnptf 4500 Psi

Product Description

The PARKER 3/8 CD-S is a 90-degree street elbow fitting designed for high-pressure industrial pipe systems. It connects male NPT threads on one end to female NPT threads on the other, allowing a direction change within a piping run without a separate coupling. Rated to 4,500 psi maximum working pressure, this fitting is built from zinc-plated steel for corrosion resistance in demanding service environments. The 3/8-inch MNPTF x FNPTF thread configuration suits a wide range of compressed air, hydraulic, and general fluid systems. Licensed plumbers, pipefitters, and industrial maintenance technicians are the typical installers.

This street elbow is suited for residential and commercial applications where a compact 90-degree turn is needed in a threaded pipe assembly. It is commonly installed in compressed air distribution lines, hydraulic circuits, and industrial fluid transfer systems operating at elevated pressures. The single-piece street elbow design reduces the number of connection points in a run, which can help minimize potential leak paths in high-pressure installations.

Key Features

• 4,500 psi maximum working pressure for high-pressure service
• 90-degree street elbow configuration combines male and female threads in one fitting
• 3/8-inch MNPTF x FNPTF thread connection on both ends
• Zinc-plated steel construction for corrosion resistance
• Compact design reduces the need for additional couplings in tight spaces

Compatibility

Designed as an OEM-style replacement or new-install fitting for threaded steel pipe systems using 3/8-inch NPT connections in industrial, commercial, and mechanical service applications.

Installation Notes

Installation should be performed by a licensed pipefitter or plumber in accordance with applicable mechanical and plumbing codes. Depressurize and isolate the system completely before disassembling any existing fittings. Apply thread sealant or PTFE tape appropriate for the fluid service before threading the fitting into place. Do not over-tighten; use a pipe wrench with proper leverage for a secure, leak-free connection without damaging the threads.
