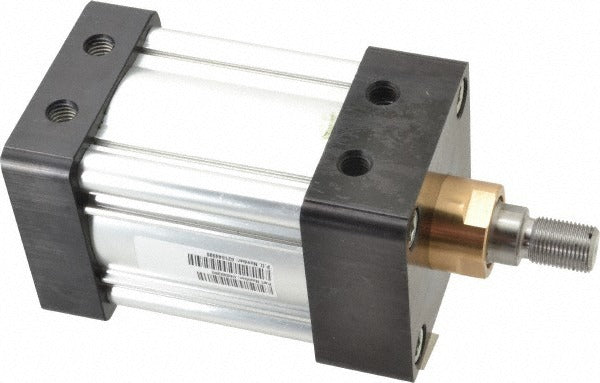

Parker 3.25TEF4MAU14A02.00 Rodless Air Cylinder

Product Description

The PARKER 3.25TEF4MAU14A02.00 is a double acting rodless air cylinder designed for linear motion control in pneumatic systems. It features a 3-1/4 inch bore and a 2 inch stroke, delivering smooth, bidirectional actuation up to 250 psi maximum working pressure. The aluminum body keeps weight manageable at 8.9 pounds while providing structural rigidity. Port connections are 1/2 NPTF, and the rod thread is 3/4-16 female style. This cylinder is installed by industrial maintenance technicians and pneumatic system integrators in automated equipment, tooling fixtures, and material handling applications.

This cylinder is suited for space-constrained linear actuator installations where a traditional rod-style cylinder would exceed available travel clearance. The rodless design allows the full stroke length to be contained within the cylinder body envelope. With an overall length of 6-1/4 inches and an overall width of 3-3/4 inches, it fits compact panel and frame mounting configurations. Basic mount style supports direct bolting to machine structures. Nitrile butadiene rubber seals make it compatible with standard lubricated or non-lubricated plant air supplies.

Key Features

• Double acting design provides powered extension and retraction strokes
• 3-1/4 inch bore with 2 inch stroke for compact linear travel
• 250 psi maximum working pressure rated for standard industrial air supply
• 1/2 NPTF port size for secure, leak-resistant pneumatic connections
• Aluminum body construction reduces weight while maintaining rigidity
• Nitrile butadiene rubber seals compatible with standard plant air

Compatibility

Designed as an OEM-style replacement or new-installation rodless pneumatic cylinder for industrial automation and pneumatic actuation systems requiring a 3-1/4 inch bore, basic mount configuration.

Installation Notes

Installation should be performed by a qualified pneumatic technician or industrial maintenance professional. Depressurize and lock out the pneumatic circuit before removing or installing any cylinder. Verify that supply air pressure does not exceed the 250 psi maximum working pressure rating. Ensure port fittings are compatible with 1/2 NPTF threads and that mounting surfaces are flat and capable of supporting the load and reaction forces of the application.
