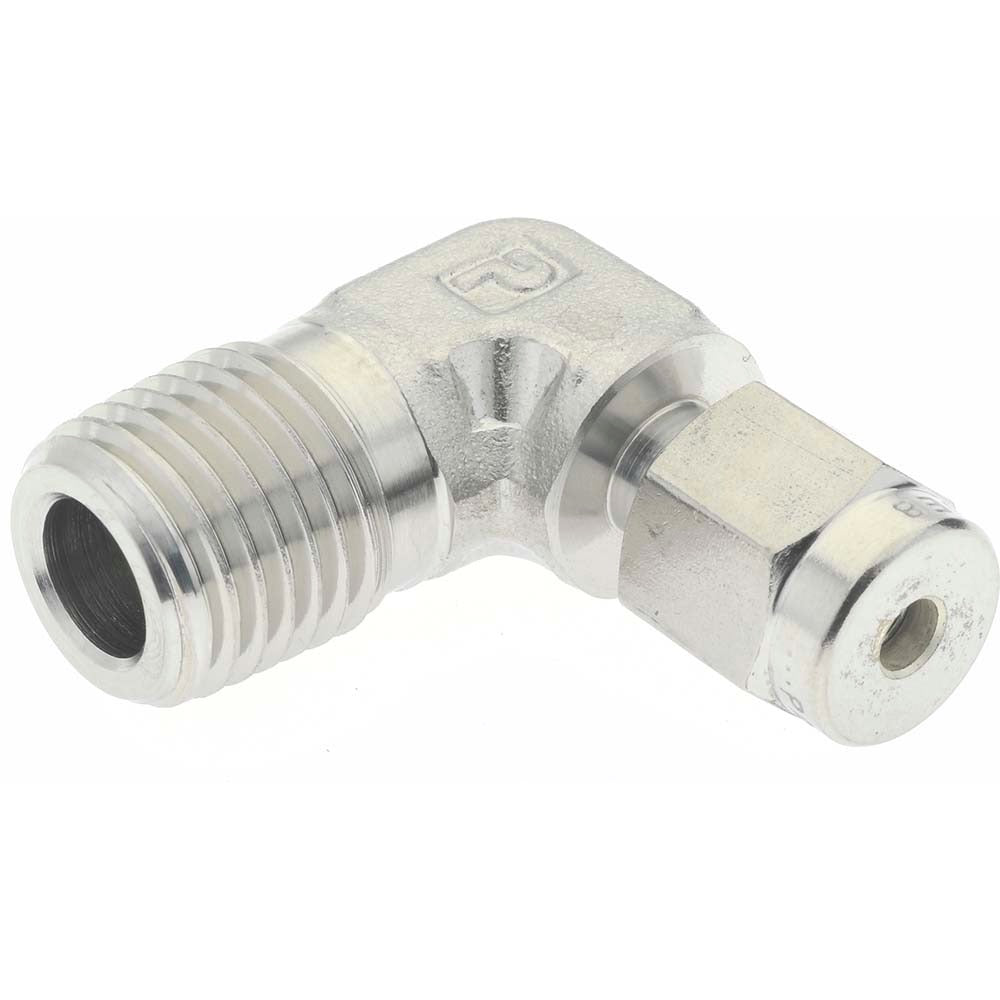

Parker 2MSEL4N-316 Compression Male Elbow 1/4-18 Npt

Product Description

The PARKER 2MSEL4N-316 is a stainless steel compression tube male elbow fitting designed to connect compression tubing to a male NPT threaded port at a 90-degree angle. Built from 316 stainless steel, it handles extreme service conditions with a maximum working pressure of 10,900 psi and a temperature range of -425 degrees F to 1,200 degrees F. This fitting is installed by licensed plumbers, pipefitters, and instrumentation technicians working on high-pressure fluid or gas systems where corrosion resistance and leak-free performance are critical.

The 2MSEL4N-316 is suited for use in industrial, hydraulic, instrumentation, and process piping applications. Its compression-to-MNPT end connections make it a practical choice when transitioning from tubing runs to threaded pipe ports on valves, manifolds, or equipment panels. The 1/4-18 NPT thread size is one of the most common thread sizes found in instrumentation and process control installations in both commercial and industrial settings.

Key Features

• 316 stainless steel construction provides excellent corrosion and chemical resistance
• Rated to 10,900 psi maximum working pressure for demanding high-pressure service
• Wide temperature range from -425 degrees F to 1,200 degrees F suits cryogenic and high-heat applications
• Compression x MNPT end connections allow direct tubing-to-threaded-port transitions
• 1/4-18 NPT thread conforms to standard NPT thread specification for reliable sealing
• Compact elbow configuration reduces space requirements at connection points

Compatibility

Designed as an OEM-style compression fitting for use in high-pressure instrumentation, hydraulic, and process piping systems requiring a compression tube to male NPT elbow connection in 316 stainless steel.

Installation Notes

Installation should be performed by a qualified pipefitter, plumber, or instrumentation technician. Depressurize and isolate the system completely before installing or removing any compression fitting. Apply appropriate thread sealant to the NPT threads per system requirements and applicable codes such as ASME B31.3 or IFGC. Do not overtighten the compression nut, as this can damage the ferrule and compromise the seal.
