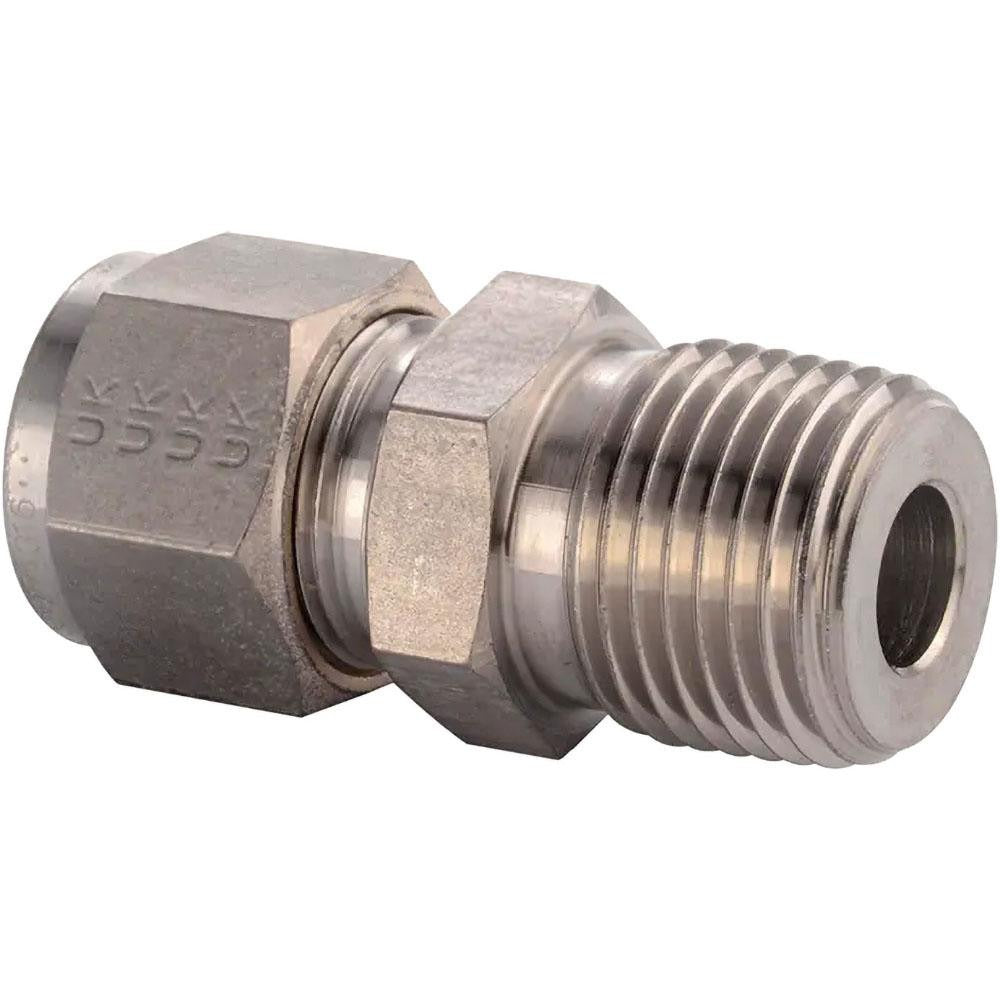

Parker 2MSC1N-316 Compression Tube Connector 1/16-27 Npt

Product Description

The PARKER 2MSC1N-316 is a stainless steel compression tube connector designed to join tubing to a male NPT threaded port. It features a 1/16-27 NPT thread size with a compression-to-MNPT end connection configuration. Rated for a maximum working pressure of 10,900 psi and a temperature range of -425 degrees F to 1,200 degrees F, this fitting is built for demanding fluid and gas system applications. The 316 stainless steel construction provides strong resistance to corrosion and oxidation. Plumbers, pipefitters, and instrumentation technicians working on high-pressure lines will find this connector suited to precision tubing assemblies.

This connector is appropriate for use in industrial instrumentation, process control, hydraulic, and pneumatic tubing systems where a secure, leak-tight compression-to-male NPT transition is required. Its extreme temperature and pressure ratings make it viable in both cryogenic and high-temperature process environments. The compact overall length of 1.17 inches suits installations where space is limited and precise tubing routing is necessary. It is sold individually and is packaged as a single-unit item.

Key Features

• 316 stainless steel construction for corrosion and oxidation resistance
• Maximum working pressure rated at 10,900 psi for high-pressure service
• Broad temperature range: -425 degrees F to 1,200 degrees F
• Compression x MNPT end connections for direct tubing-to-pipe-thread transitions
• 1/16-27 NPT thread size per standard NPT specification
• Compact overall length of 1.17 inches for tight installation spaces

Compatibility

Designed as an OEM-style replacement or direct-fit component for compression tubing systems using 1/16-27 NPT male threaded ports in industrial, instrumentation, and process piping applications.

Installation Notes

Installation should be performed by a licensed pipefitter, plumber, or instrumentation technician familiar with compression fitting assemblies and NPT thread standards. Depressurize and isolate the line completely before removing or installing any fittings. Do not over-tighten the compression nut, as this can deform the ferrule and compromise the seal. Verify thread compatibility and system pressure ratings before placing the fitting into service.
