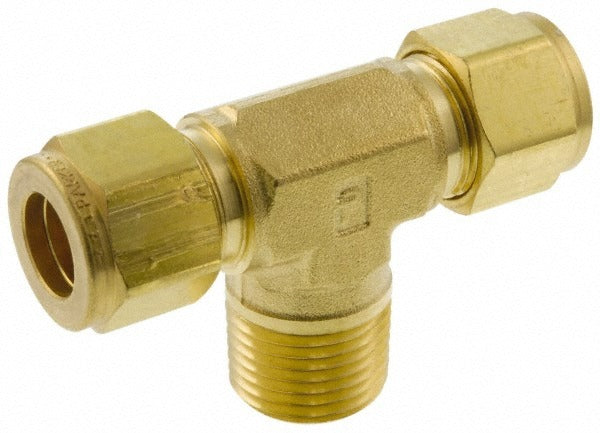

Parker 2MBT2N-B Compression Male Branch Tee 1/8 Inch

Product Description

The PARKER 2MBT2N-B is a brass compression male branch tee fitting designed to create a branch connection in tubing runs while providing a male NPT threaded outlet. It combines two compression ends with a single 1/8 inch MNPT connection, allowing a technician to split or branch a compressed fluid or gas line without additional adapters. Rated to 3600 psi maximum working pressure, this fitting suits demanding applications where pressure integrity and leak-free connections are critical. The all-brass construction resists corrosion and handles a wide range of compatible media. HVAC, refrigeration, pneumatic, and instrumentation technicians commonly install this type of fitting in both residential and commercial systems.

This fitting is appropriate for use in pneumatic control lines, instrumentation tubing systems, refrigeration pilot circuits, and compressed air distribution where a branch takeoff with a male pipe thread port is required. It is suited for both residential and light commercial installations wherever a reliable, high-pressure compression branch connection is needed. The 1/8 inch MNPT port allows direct connection to valves, sensors, gauges, or other threaded components inline with the tubing run.

Key Features

• Compression x Compression x MNPT end connections allow branching a tubing run to a threaded port without additional adapters
• 3600 psi maximum working pressure rating suits high-pressure pneumatic and instrumentation applications
• Brass construction provides corrosion resistance and compatibility with a wide range of fluids and gases
• 1/8 inch MNPT thread conforms to standard MPT thread specifications for broad component compatibility
• Compact branch tee geometry minimizes space requirements in tight tubing assemblies

Compatibility

Swagelok equivalent part number B-200-3-4TTM is referenced in supplier data. Designed as an OEM-style compression branch tee for pneumatic, instrumentation, and fluid control tubing systems using standard compression fittings with 1/8 inch male pipe thread connections.

Installation Notes

Installation should be performed by a qualified technician familiar with compression fitting assembly procedures. Depressurize and isolate the tubing circuit completely before removing any existing fittings or installing this branch tee. Compression fittings require proper ferrule seating — follow the fitting manufacturer's turn-count or torque guidance for the specific tubing material and wall thickness in use. Verify thread engagement on the MNPT port with an appropriate thread sealant or tape per applicable plumbing or instrumentation codes before returning the system to service.
