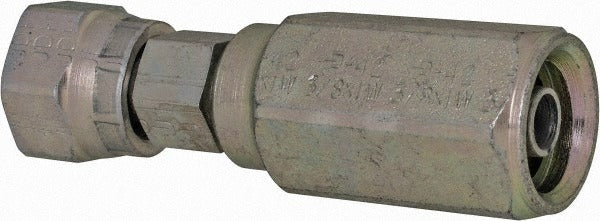

Parker 2JS42-6-6 Female Seal-lok Swivel Fitting 6000 Psi

Product Description

The PARKER 2JS42-6-6 is a female Seal-Lok swivel short fitting designed for hydraulic hose assemblies operating at pressures up to 6,000 psi. Machined from steel, it accepts 3/8 inch hose and threads onto a 11/16-16 SAE port. The swivel design allows the hose to be positioned without twisting during installation or operation. This fitting is installed by hydraulic technicians and fluid power mechanics building or repairing high-pressure hydraulic lines on mobile and industrial equipment.

This fitting is suited for high-pressure hydraulic systems found in mobile machinery, industrial power units, and construction equipment. It is a short-body configuration, making it a practical choice in tight routing applications where a standard-length fitting would create clearance issues. The SAE thread form is widely used across OEM and aftermarket hydraulic assemblies in both residential and commercial service environments.

Key Features

• Rated to 6,000 psi for high-pressure hydraulic service
• Female Seal-Lok swivel design prevents hose twist during makeup
• Short-body configuration for space-constrained installations
• Steel construction for durability in industrial hydraulic environments
• 11/16-16 SAE thread for broad port compatibility
• Accepts 3/8 inch hydraulic hose

Compatibility

Designed as an OEM-style replacement or assembly fitting for 3/8 inch hydraulic hose systems using 11/16-16 SAE female Seal-Lok swivel connections rated to 6,000 psi.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Depressurize the hydraulic system completely and allow it to cool before removing or installing any fittings. Use appropriate wrenching flats and avoid over-torquing, which can damage the sealing surfaces on Seal-Lok style fittings. Inspect the sealing face and O-ring contact area for damage before assembly.
