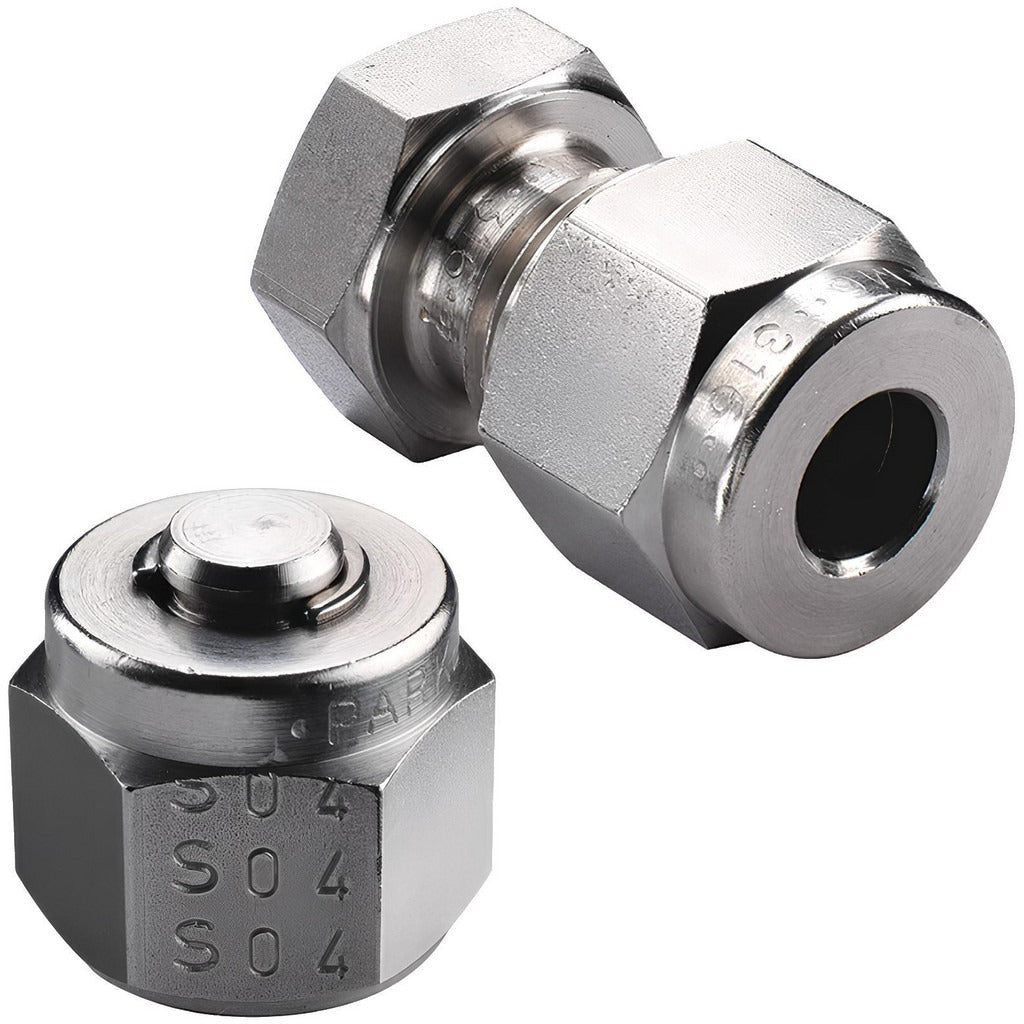

Parker 2BLEN2-316 Compression Tube End Cap 1/8 in Ss

Product Description

The PARKER 2BLEN2-316 is a compression-style tube end cap machined from 316 stainless steel. It seals the open end of a compression tube line without threads or welding, using mechanical compression to create a pressure-tight closure. Rated to 10900 psi maximum working pressure and capable of handling temperatures from -425 degrees F to 1200 degrees F, this fitting is built for demanding fluid and gas service in high-pressure or extreme-temperature environments. It accepts tubing with a 1/8 inch outside diameter and installs with standard compression fitting tools.

This end cap is suited for hydraulic, pneumatic, instrumentation, and process piping applications where a clean, reliable tube termination is required. Its stainless steel construction makes it appropriate for corrosive environments, offshore installations, chemical processing lines, and industrial instrumentation systems. Licensed plumbers, pipefitters, and instrumentation technicians are the primary installers in both commercial and industrial settings.

Key Features

• 316 stainless steel construction for corrosion resistance in harsh service environments
• Compression-style connection requires no welding or threading of the tube end
• Rated to 10900 psi maximum working pressure
• Wide temperature range: -425 degrees F to 1200 degrees F
• Accepts 1/8 inch outside diameter tubing
• Compact single-piece design for clean tube termination

Compatibility

Designed as an OEM-style compression fitting end cap compatible with 1/8 inch OD tubing in standard compression fitting systems.

Installation Notes

Installation is performed by licensed pipefitters or instrumentation technicians following applicable system codes including ASME B31.3 for process piping. Depressurize and isolate the line completely before removing or capping any tube end. Use an appropriately sized compression fitting wrench to tighten the ferrule without over-torquing, and inspect the fitting for leaks after restoring system pressure.
