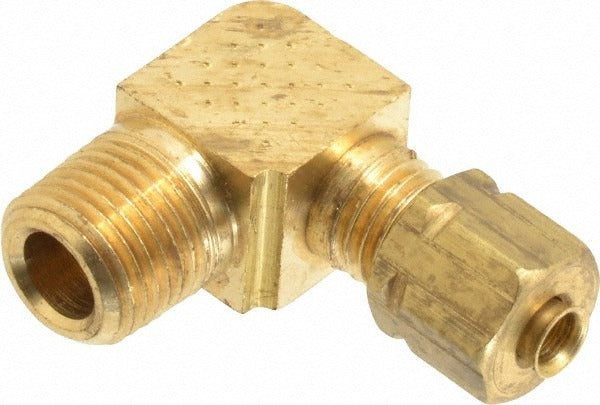

Parker 269CA-2-2 Brass Compression Male Elbow 1/8-27

Product Description

The PARKER 269CA-2-2 is a brass compression tube male elbow fitting designed to connect a compression tube line to a male NPT port at a 90-degree angle. It accepts a 1/8-27 NPTF thread on the male end and a compression connection on the tube end, creating a secure, leak-resistant joint in hydraulic, pneumatic, and fluid-distribution systems. Rated to 2800 psi maximum working pressure, it handles demanding service conditions across a wide temperature range of -65 degrees F to 250 degrees F. Licensed plumbers, HVAC technicians, and pipefitters install this fitting in both new construction and service work.

This fitting is suited for residential and light commercial applications where a compression tube line must transition to a threaded male port. Typical install scenarios include fuel, oil, hydraulic, and instrument lines where a reliable right-angle connection is needed without welding or brazing. The NPTF thread standard provides a pressure-tight seal through thread interference, reducing reliance on additional sealant in many dry-seal applications.

Key Features

• 90-degree male elbow routes tubing at right angles for tight spaces
• Brass construction offers corrosion resistance in fluid and pneumatic service
• 2800 psi maximum working pressure handles high-demand hydraulic and pneumatic lines
• Wide temperature range: -65 degrees F to 250 degrees F
• 1/8-27 NPTF thread standard provides a dry-seal, pressure-tight connection
• Compression x MNPT end connections for tool-accessible, repeatable assembly

Compatibility

Designed as an OEM-style replacement or new-installation fitting for systems using compression tube connections transitioning to 1/8-27 MNPT ports in hydraulic, pneumatic, fuel, and instrument piping applications.

Installation Notes

Installation should be performed by a licensed plumber, pipefitter, or qualified HVAC technician following applicable IPC or IFGC guidelines. De-pressurize and isolate the system fully before removing or installing any compression fitting. Hand-tighten the compression nut first, then advance with a wrench to avoid over-tightening, which can crack the compression sleeve. Inspect the tube end for burrs or deformation before assembly to ensure a leak-free seal.

WARNING: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
