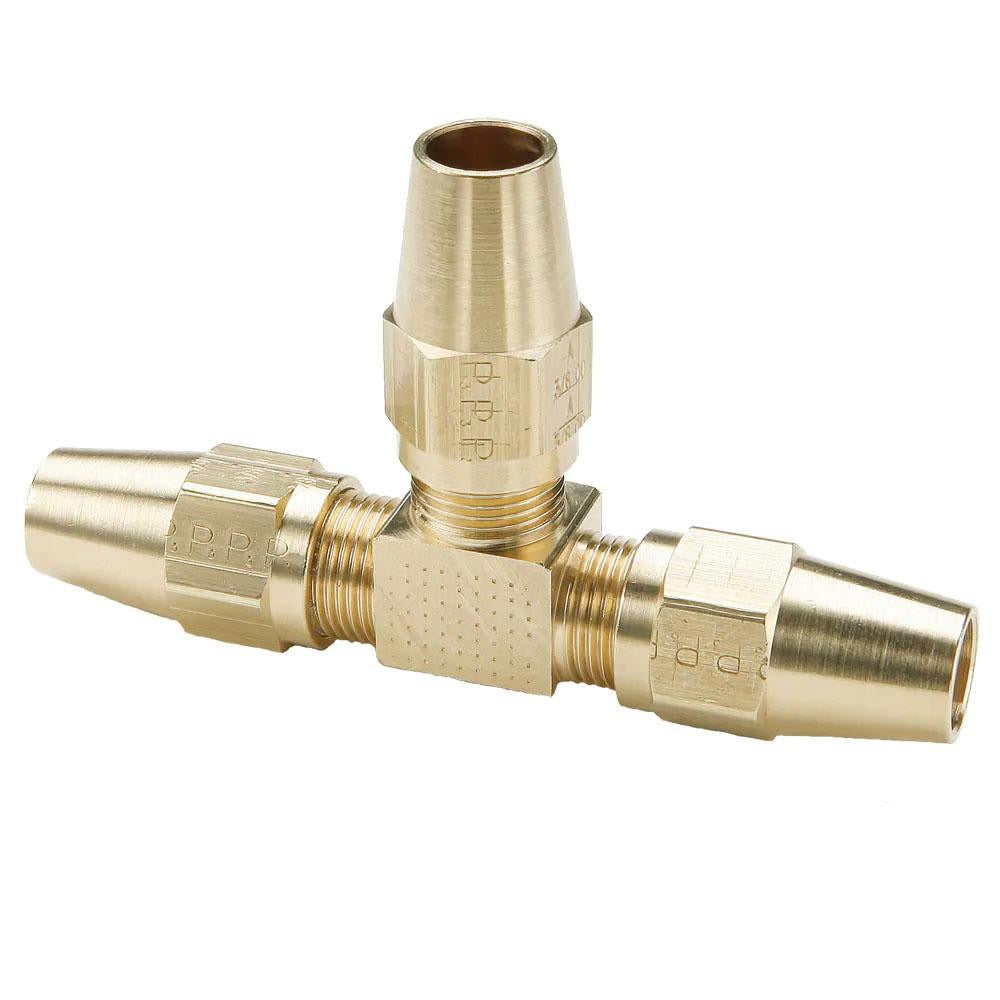

Parker 264AB-8 Brass Compression Tee Union 400 Psi

Product Description

The PARKER 264AB-8 is a brass compression tee union with three compression end connections configured in a tee shape. It is designed to join or branch tubing runs in fluid and pneumatic systems where a reliable, leak-resistant mechanical connection is required. Rated to 400 psi maximum working pressure and certified to DOT FMVSS571.106 and SAE J246 standards, this fitting is built for demanding service environments. The brass construction provides corrosion resistance and durability across a wide temperature range. Licensed plumbers, HVAC technicians, and fleet maintenance professionals commonly install this fitting in brake line, fuel line, and hydraulic tubing assemblies.

The 264AB-8 is suited for residential, commercial, and automotive or fleet applications where a tee branch connection is needed in a compression-style tubing system. Its DOT and SAE certifications make it appropriate for use in regulated vehicle brake and fluid systems as well as general industrial tube runs. The 0.408 inch inside diameter accommodates standard tubing sizes in that range. This fitting is typically installed wherever a single tube line must be split into two outlets or where three tube segments must be joined at a single junction point.

Key Features

• Tee configuration with three compression end connections for branching tube runs
• Rated to 400 psi maximum working pressure
• Certified to DOT FMVSS571.106 and SAE J246 standards
• Brass construction for corrosion resistance and durability
• Wide operating temperature range from -65 degrees F to 250 degrees F
• 0.408 inch inside diameter for standard tubing fitment

Compatibility

Designed as a DOT-compliant compression tee union for use in vehicle brake line systems, fuel line assemblies, and general industrial tubing applications where SAE J246 and DOT FMVSS571.106 compliance is required.

Installation Notes

Installation should be performed by a licensed technician or qualified mechanic familiar with compression fitting assembly procedures. Depressurize and drain the tubing system completely before disassembling or installing any fittings. Ensure tubing ends are cut cleanly and deburred before seating them into the compression fitting to prevent leaks. Follow applicable DOT regulations and SAE guidelines for brake and fluid line installations in regulated vehicle systems.
