Parker 26-5/32-2 Barbed Tube Female Connector 1/8-27

Product Description

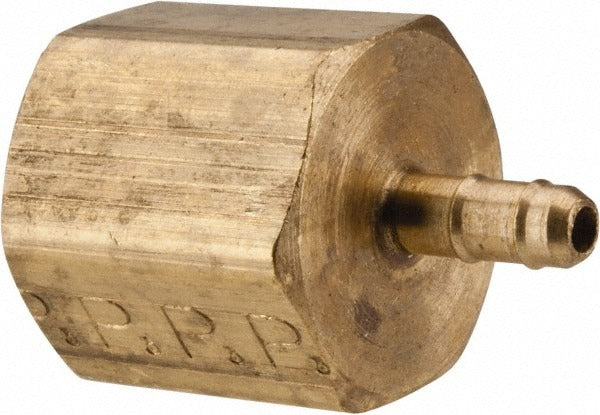

The PARKER 26-5/32-2 is a brass barbed tube female connector designed to join barbed tubing to a female-threaded port in fluid or pneumatic line assemblies. The fitting accepts a 5/32-inch tube outer diameter on the barbed end and threads into a 1/8-27 female port. Constructed from brass, it provides reliable corrosion resistance and durability in low-pressure plumbing, pneumatic, and instrumentation applications. This type of connector is commonly installed by HVAC technicians, plumbers, and industrial maintenance professionals working with small-bore tubing systems.

This fitting is suited for residential and light commercial applications where barbed tubing must connect to a threaded female port. Typical use cases include condensate drain lines, pneumatic control tubing, and small-diameter fluid transfer lines. The compact size and brass construction make it appropriate for installations in confined spaces or environments where corrosion resistance is a priority.

Key Features

• Brass construction for corrosion resistance and long service life
• 5/32-inch tube OD barbed end secures flexible tubing without additional hardware
• 1/8-27 thread size for standard female-threaded port connections
• Female connector configuration allows direct in-line tubing termination
• Compact form factor suitable for tight installation spaces

Compatibility

Designed as an OEM-style replacement or new-installation fitting for systems using 5/32-inch OD barbed tubing with 1/8-27 threaded female ports in plumbing, HVAC, and pneumatic control applications.

Installation Notes

Installation is typically performed by a licensed plumber, HVAC technician, or qualified maintenance professional. Shut off system pressure and depressurize the line before removing or installing any fittings. Apply thread sealant or PTFE tape to the threaded connection as appropriate for the fluid or gas being conveyed. Ensure the barbed end is fully seated with compatible flexible tubing and secured per system requirements.
