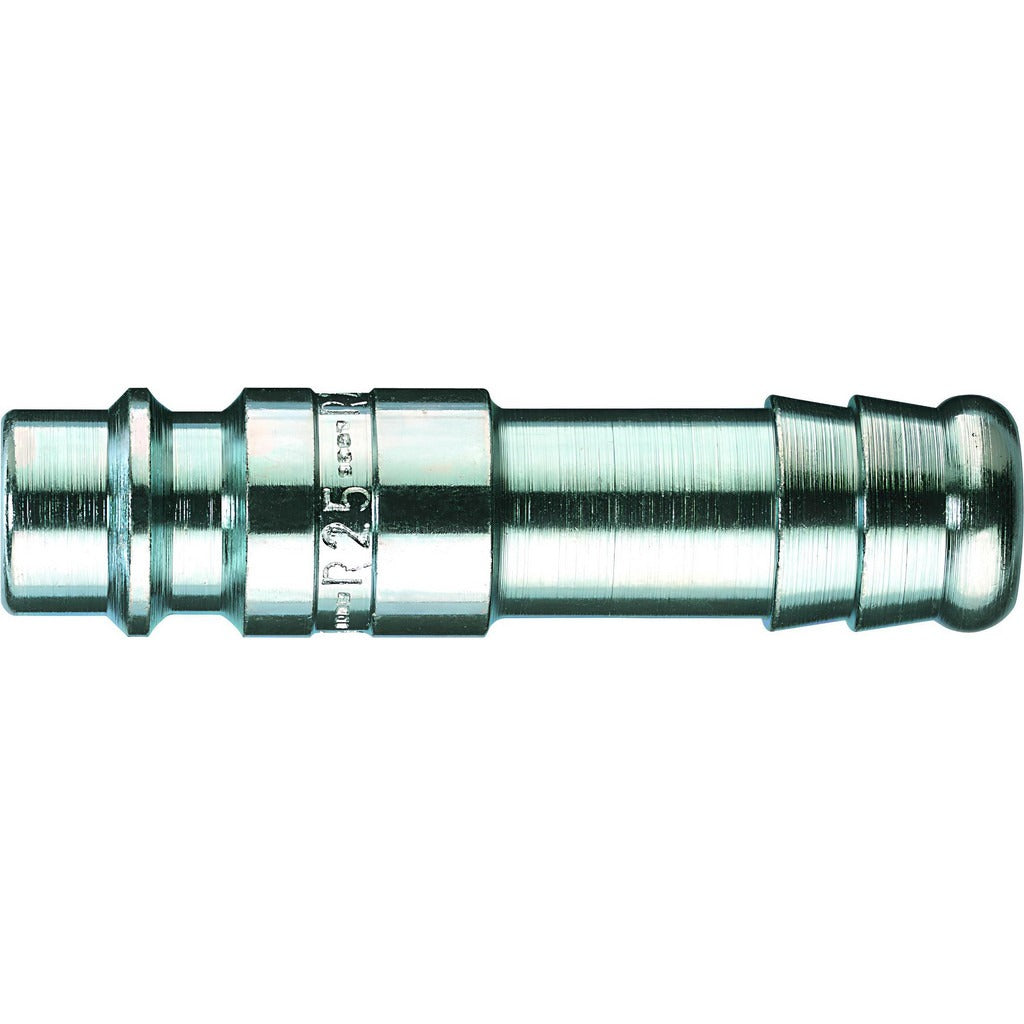

Parker 25SFTP10SXN High Flow Plug Coupling 3/8 in Steel

Product Description

The PARKER 25SFTP10SXN is a high flow pneumatic plug coupling designed for compressed air and pneumatic tool systems. It features a Push-Lok hose barb thread type that locks onto compatible hose without additional clamps, providing a secure, leak-resistant connection. The body is manufactured from steel for durability in industrial and trade environments. Rated to 300 psi maximum working pressure and capable of operating from -4 degrees F to 212 degrees F, this plug coupling is suited for demanding shop and field applications. HVAC technicians, plumbers, and general tradespeople use plug couplings like this to connect air-powered tools and equipment to supply lines quickly and reliably.

This coupling is intended for pneumatic air systems where a high flow plug-style connection is required. The 3/8 inch hose inside diameter and 1/2 inch body diameter make it compatible with standard 3/8 inch pneumatic hose assemblies. It is commonly installed on air compressor lines, pneumatic tool whips, and portable air supply setups in residential and light commercial service environments. The high flow interchange type allows increased airflow compared to industrial-interchange couplings, making it a preferred choice for tools that demand consistent air volume.

Key Features

• High flow coupling design supports increased airflow for air-hungry pneumatic tools
• Push-Lok hose barb connection secures onto hose without external clamps
• Steel body construction provides resistance to wear and impact in shop environments
• Rated to 300 psi maximum working pressure
• Wide operating temperature range of -4 degrees F to 212 degrees F
• Plug-style coupling for fast connect and disconnect from mating coupler bodies

Compatibility

Designed as an OEM-style replacement high flow plug coupling for use with 3/8 inch inside diameter pneumatic hose assemblies using Push-Lok hose barb connections.

Installation Notes

Installation is typically performed by a licensed trades professional or qualified technician. Depressurize and bleed the air supply line completely before removing or installing any pneumatic coupling. Ensure the hose inside diameter matches the 3/8 inch barb size before seating the Push-Lok connection fully. Do not exceed the 300 psi maximum working pressure rating of the fitting.
