Parker 25SFTP06SXN High Flow Plug Coupling 0.25 Inch Steel

Product Description

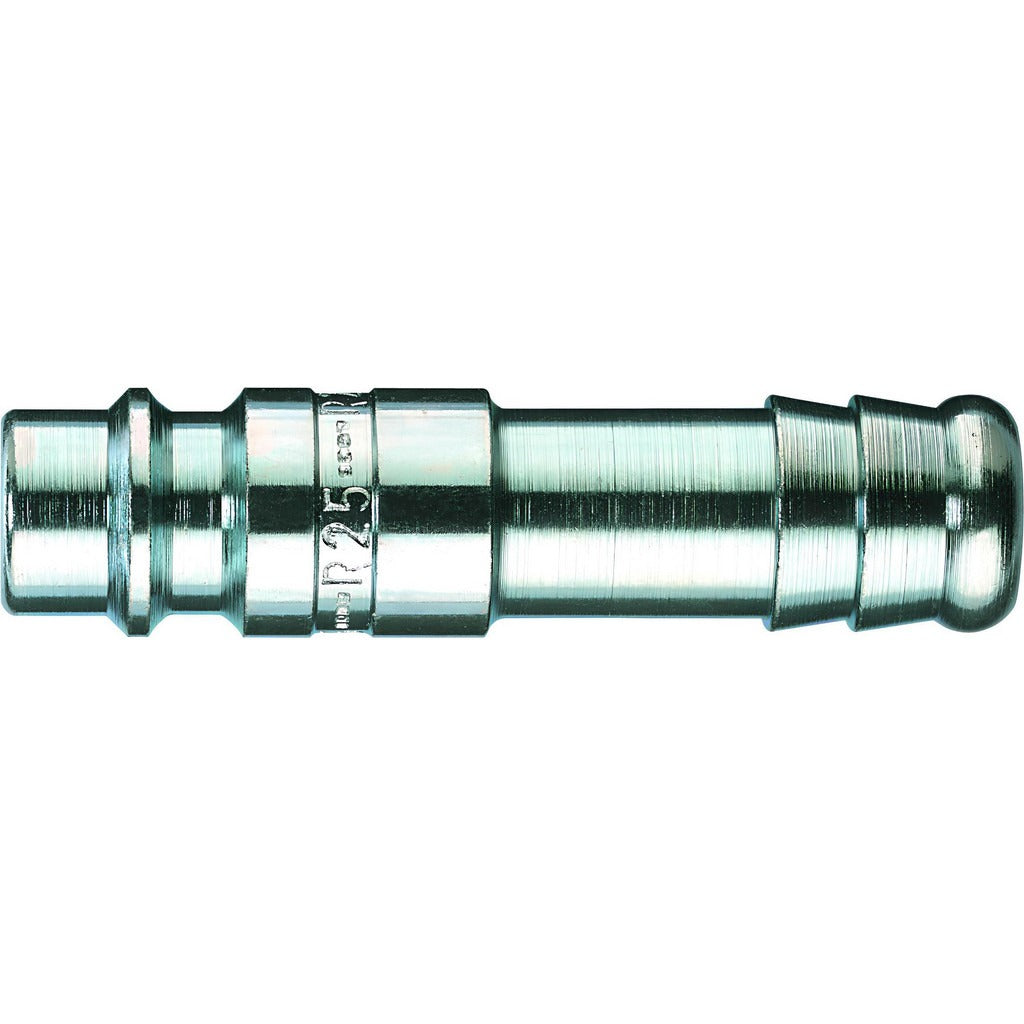

The PARKER 25SFTP06SXN is a high flow pneumatic plug coupling designed for use in compressed air distribution and pneumatic tool systems. Built from steel, this plug-type coupler accepts a Push-Lok hose barb connection with a 1/4 inch thread size and a 0.25 inch hose inside diameter. It is rated for a maximum working pressure of 300 psi and handles temperatures from -4 degrees F to 212 degrees F, making it suitable for a broad range of shop and field pneumatic applications. The 0.5 inch body diameter and hose-end connection style allow for straightforward assembly without crimping tools in many configurations. Licensed technicians and industrial maintenance professionals are the typical installers.

This coupling is used in pneumatic systems where a high flow plug interface is required. The Push-Lok hose barb thread type suits flexible pneumatic hose assemblies commonly found in production facilities, maintenance shops, automotive service bays, and general industrial environments. The high flow interchange type supports maximum air delivery with minimal pressure drop, which is important when operating air tools or actuators at full capacity.

Key Features

• High flow plug coupling for maximum air delivery with reduced pressure drop
• Push-Lok hose barb connection for secure, tool-friendly hose assembly
• Steel construction for durability in industrial and shop environments
• 300 psi maximum working pressure
• Operating temperature range of -4 degrees F to 212 degrees F
• 0.25 inch hose inside diameter with 0.5 inch body diameter

Compatibility

Designed as an OEM-style replacement or new-installation plug coupling for pneumatic hose assemblies using 1/4 inch Push-Lok hose barb connections in high flow interchange systems.

Installation Notes

Installation should be performed by a qualified technician familiar with pneumatic system assembly. Depressurize and isolate the pneumatic circuit completely before disconnecting or installing any coupling. Verify that hose inside diameter and working pressure ratings match the existing system requirements before assembly. Inspect the hose end for cuts or deformation prior to seating it onto the Push-Lok barb.
