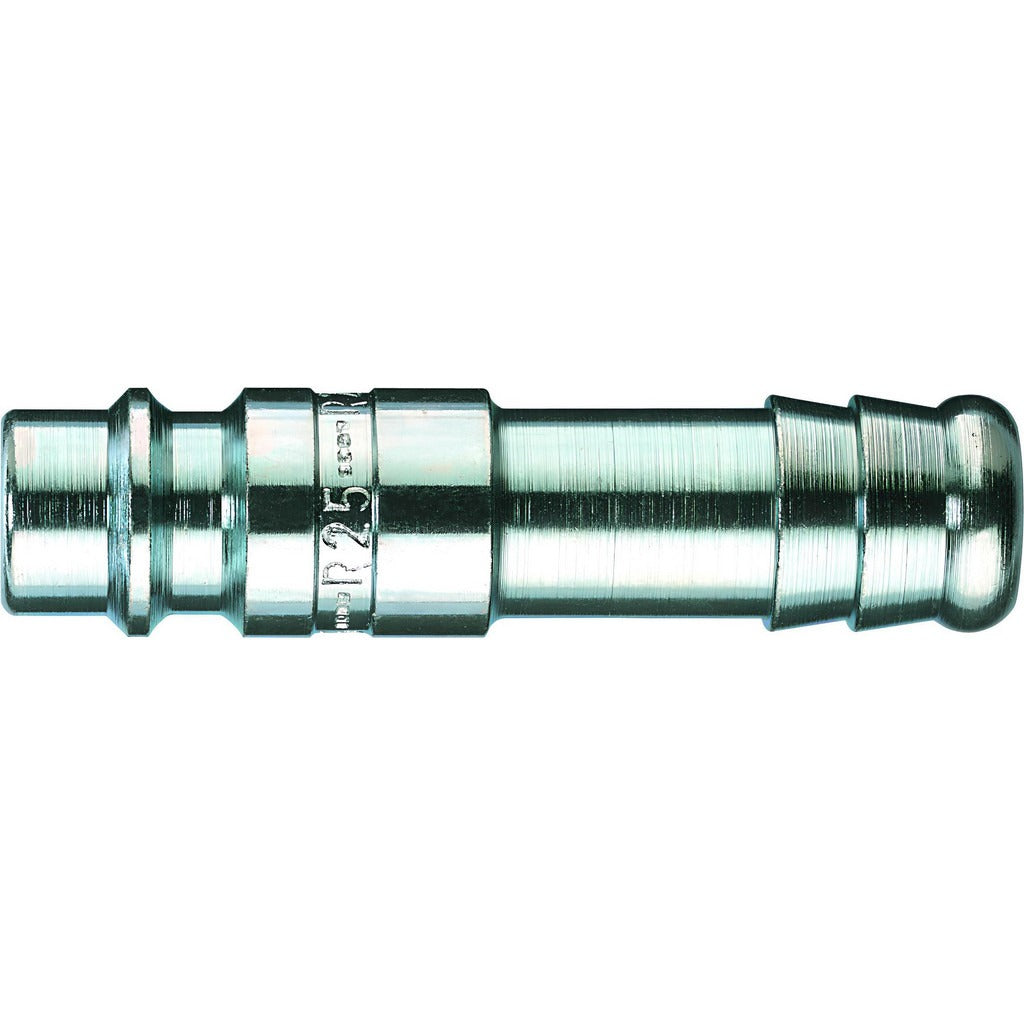

Parker 25SFTF06SXZ High Flow Plug Coupling Hose Barb 300 Psi

Product Description

The PARKER 25SFTF06SXZ is a high flow pneumatic plug coupling designed for compressed air and pneumatic tool connections. It uses a hose barb thread type with a 0.25 inch coupler size, making it compatible with quarter-inch inside diameter hose. The steel body measures 0.5 inches in body diameter and is rated for a maximum working pressure of 300 psi. Rated for temperatures from -4 degrees F to 212 degrees F, this fitting handles demanding shop and field conditions. It is installed by HVAC technicians, industrial mechanics, and pneumatic system service pros who need a reliable high flow connection point.

This plug coupling is suited for residential and commercial pneumatic tool installations, air compressor distribution lines, and inline service connections where high flow capacity is required. The hose barb connection type allows direct attachment to flexible pneumatic hose without additional adapters. Its compact steel construction makes it appropriate for tight panel or manifold installations where a standard interchange profile is needed.

Key Features

• High flow plug design for increased air volume delivery
• Hose barb connection fits 0.25 inch inside diameter hose
• Steel construction for durability in shop and field environments
• Rated to 300 psi maximum working pressure
• Wide service temperature range: -4 degrees F to 212 degrees F
• 0.5 inch body diameter for standard high flow interchange fitment

Compatibility

Designed as an OEM-style high flow plug coupling for pneumatic hose systems using 0.25 inch inside diameter hose with hose barb connections and high flow interchange profiles.

Installation Notes

This fitting is installed by qualified pneumatic system technicians or industrial mechanics. Depressurize and lockout the air supply line completely before removing or installing any pneumatic coupling. Ensure the hose is fully seated on the barb and secured with an appropriate clamp per the system design requirements. Follow applicable shop air safety guidelines and local codes when working on compressed air distribution systems.
