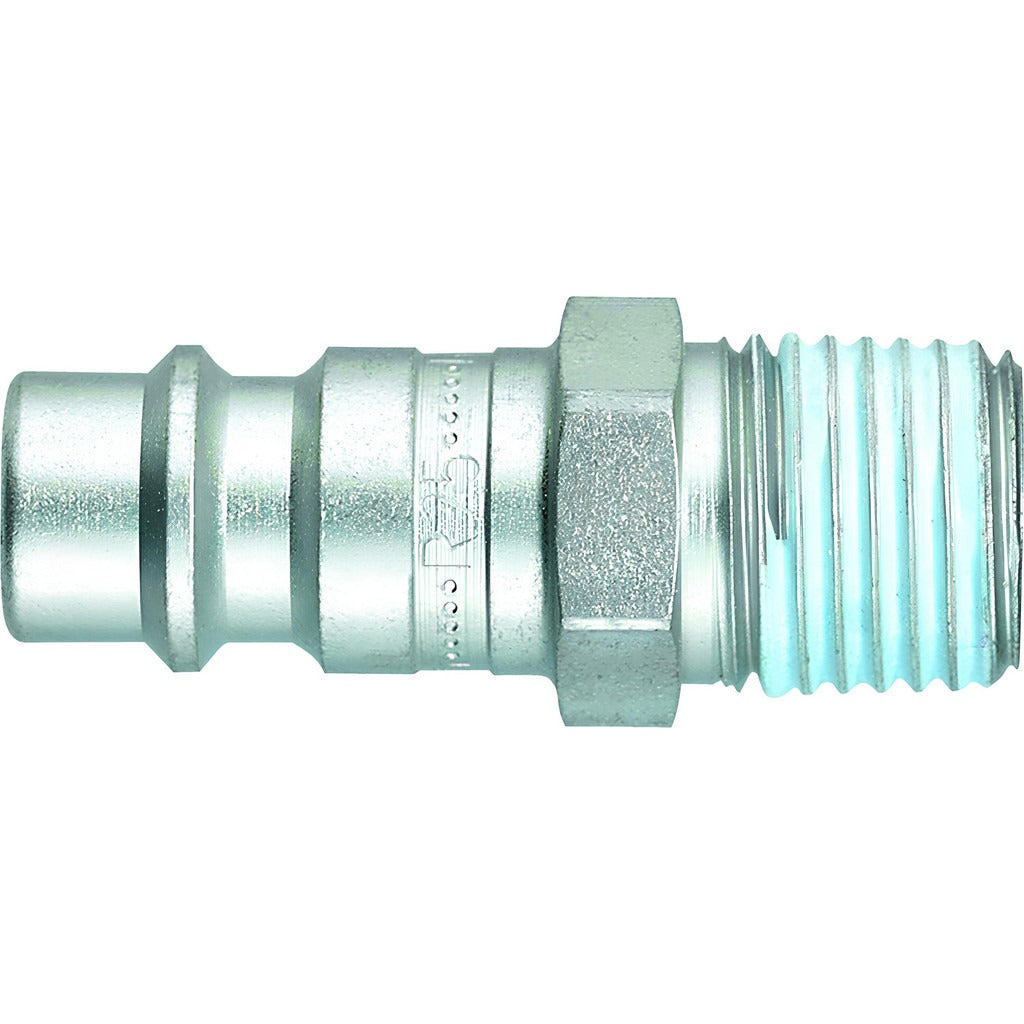

Parker 25SFAN13SXZ High Flow Plug Coupling 1/4 Mnpt Steel

Product Description

The PARKER 25SFAN13SXZ is a high flow pneumatic plug coupling designed for use in compressed air systems where quick-connect and disconnect of air lines is required. Built from steel, this 1/4 inch MNPT threaded plug accepts high-demand flow applications and is rated to 300 psi maximum working pressure. The 21/32 inch body diameter and 0.56 inch hex size allow for standard hand and wrench installation. It operates across a temperature range of -4 degrees F to 212 degrees F, making it suitable for a broad range of shop and industrial environments. HVAC technicians, industrial mechanics, and maintenance professionals routinely work with fittings of this type when servicing pneumatic tool circuits and compressed air distribution systems.

This plug coupling is suited for use in light industrial, commercial, and shop environments where high flow pneumatic connections are needed. The MNPT threaded connection makes it compatible with standard pipe-threaded ports on air manifolds, compressors, tool drops, and pneumatic control circuits. Its high flow interchange design allows pairing with compatible high flow coupler bodies, improving airflow to pneumatic tools and reducing pressure drop at the connection point.

Key Features

• High flow plug design reduces pressure drop at the coupling interface
• 1/4 inch MNPT thread for direct connection to standard pipe-threaded ports
• Steel construction for durability in shop and industrial environments
• 300 psi maximum working pressure rating
• Operating temperature range from -4 degrees F to 212 degrees F
• 21/32 inch body diameter with 0.56 inch hex for wrench installation

Compatibility

Designed as an OEM-style high flow plug coupling for use with compatible high flow coupler bodies in standard compressed air pneumatic systems.

Installation Notes

Installation should be performed by a qualified technician or mechanic familiar with compressed air systems. Depressurize the air line fully before installing or removing any coupling or fitting. Apply thread sealant appropriate for pneumatic service to the MNPT threads before installation. Follow applicable shop safety and compressed air system codes when working on pressurized lines.
