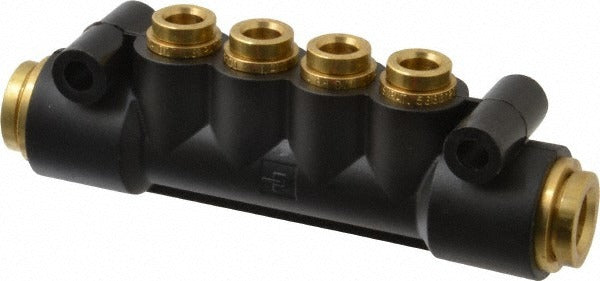

Parker 24M-6-4 Manifold 2 Inlet 4 Outlet Ports

Product Description

The PARKER 24M-6-4 is a 6-port fluid manifold designed to distribute flow from two inlet ports to four outlet ports in hydraulic, pneumatic, or fluid-transfer plumbing assemblies. The body is constructed from glass-filled nylon for chemical resistance and weight savings, while internal fittings use brass for durability at the connection points. The manifold accepts a 3/8 inch NPTF inlet and delivers to 1/4 inch NPTF outlets, with a maximum working pressure of 150 psi. Overall length is 4 inches, overall width is 0.9 inches, and the outlet center-to-center spacing is 0.55 inches. Licensed plumbers, HVAC technicians, and fluid-system installers typically work with this component.

The 24M-6-4 is suited for residential and light commercial fluid distribution applications where a compact manifold block is needed to split flow from a primary line into multiple branch circuits. Typical installations include automotive brake and fuel systems, where it meets D.O.T. FMVSS571.106, SAE J1131, and SAE J2494-3 standards. The operating temperature range of -40 degrees F to 200 degrees F allows use in a wide variety of service environments. The 0.21 inch mounting hole diameter accommodates panel or bracket mounting when a fixed installation is required.

Key Features

• 6-port configuration: 2 inlet ports and 4 outlet ports for multi-branch fluid distribution
• Glass-filled nylon body reduces weight while maintaining structural integrity
• Brass internal material provides corrosion resistance at connection interfaces
• NPTF thread type ensures a pressure-tight, dryseal connection without additional sealant
• Rated to 150 psi maximum working pressure
• Meets D.O.T. FMVSS571.106, SAE J1131, and SAE J2494-3 standards

Compatibility

Designed as an OEM-style replacement or new-installation manifold for fluid distribution systems requiring NPTF-threaded 3/8 inch inlet and 1/4 inch outlet connections, and compliant with D.O.T. FMVSS571.106, SAE J1131, and SAE J2494-3 specifications.

Installation Notes

Shut off all fluid supply and relieve system pressure before removing or installing this manifold. NPTF dryseal threads are designed to seal on the threads themselves, but inspecting for leaks after pressurizing the system is standard practice. Mounting holes allow bracket or panel attachment using appropriate fasteners sized for the 0.21 inch hole diameter. This type of manifold is typically installed by licensed plumbers or qualified fluid-system technicians following applicable industry and regulatory standards.
