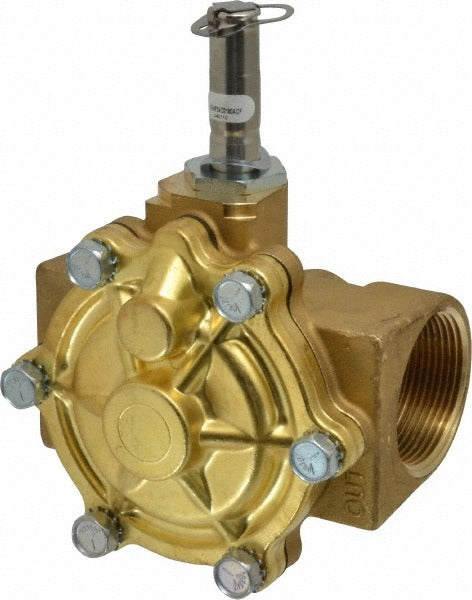

Parker 24F24O2180ACF 2-way Solenoid Valve 1-1/2 in Npt

Product Description

The PARKER 24F24O2180ACF is a 2-way piloted diaphragm solenoid valve designed for industrial and commercial fluid control applications. The valve ships without a solenoid coil, which must be sourced and installed separately. It operates in a normally open state, meaning flow passes freely until the coil is energized. Built with a brass body and NBR seal, this valve is rated for a maximum working pressure of 125 psi and carries a Cv factor of 22.5. It draws 11 watts of AC power when the coil is actuated. Licensed plumbers, pipefitters, and industrial technicians are the typical installers.

This valve is suited for controlling fluids, gases, and light oils in residential, commercial, and light industrial piping systems. The 1-1/2 inch NPT threaded port fits standard pipe connections found in process lines, water supply systems, and pneumatic circuits. The piloted diaphragm design requires a minimum operating pressure differential of 5 psi to function correctly, making it appropriate for pressurized systems where that differential is consistently maintained.

Key Features

• 2-way piloted diaphragm configuration for reliable on/off flow control
• Normally open design — flow passes without coil energization
• 1-1/2 inch NPT port for straightforward integration into standard piping
• Brass body with NBR seal — compatible with fluids, gases, and light oils
• 125 psi maximum working pressure rating
• Solenoid coil not included — select coil separately to match electrical requirements

Compatibility

Cross-references ASCO Number 8210G32. Compatible with AC power solenoid coils. Designed for pressurized systems handling fluids, gases, and light oils where a minimum operating pressure differential of 5 psi is present. Confirm coil voltage and wattage match your control circuit before ordering.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter familiar with fluid and gas control systems. Shut off system pressure and isolate the line completely before removing the existing valve or fitting the new one. Verify that system pressure differential will consistently meet or exceed the 5 psi minimum required for the piloted diaphragm to actuate. Select and install a compatible AC solenoid coil rated for your control voltage before energizing the valve.
