Product Description

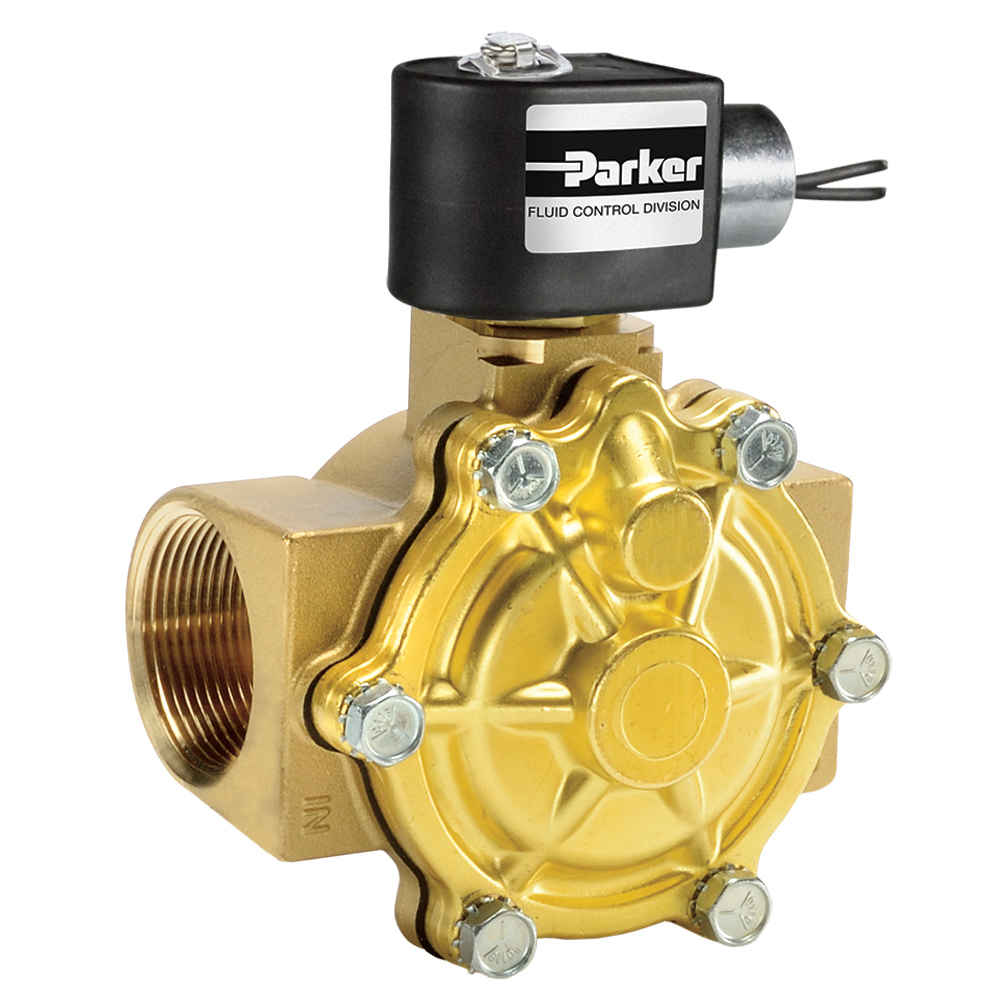

The Parker 24F24C2180A3F4C80 is a two-way solenoid valve designed for general applications. This valve features a brass body and NBR seals, making it suitable for various media including air, water, light oil, and inert gases. It operates with a 24 VDC input voltage and is internally piloted.
- Two-way normally closed configuration.
- Brass body with NBR seal material.
- Port size of one and one-half inches and orifice size of one and one-quarter inches.
Product Highlights
This solenoid valve is built for durability and reliability in multiple applications like HVAC, plumbing, and industrial processes.
Product Information
Standard Information
-
Brand: Parker
-
Sub Brand: Skinner
Technical Specifications
-
Valve Type: 2-Way
-
Function: Normally Closed
-
Port Size: 1-1/2 inches
-
Orifice Size: 1-1/4 inches
-
Body Material: Brass
-
Seal Material: NBR
-
Input Voltage: 24 VDC
-
Power Consumption: 11.5 W
-
Actuation Type: Internally Piloted
-
Media: Air, Water, Light Oil, Inert Gas
-
Minimum Pressure Differential: 5.0 psi
-
Maximum Pressure Differential: 125.0 psi
-
Maximum Fluid Temperature: 150.0 °F
-
Maximum Ambient Temperature: 77.0 °F
-
Port Type: NPT
-
Coil Type: 1/2 NPT Conduit w/ Leads (Incl. Ground Lead)
-
Insulation Class: Class F
-
Enclosure Rating: NEMA 4, 4X
-
Main Flow Coefficient: 22.5 Cv
-
Industry Standards: UL Listed and CSA Certified
-
Electrical Connection: 18 IN Leads
-
Installation: IOM 7235
-
Preventive Maintenance Kit: 24F24C2180A3FR
-
Nominal Size: 1-1/2 IN
-
Connection Type: FNPT
-
Number Of Ports/Ways: 2-Way
-
Configuration: Normally Closed
-
Pressure Rating: 5 PSI Minimum, 125 PSI for Air/Inert Gas, Water, and Light Oil
-
Temperature Rating: 150 °F
-
Trim Material: NBR
-
Coil Insulation Class: Class 155
-
Power Rating: 9.5 W
-
Width: 4-1/2 inches
-
Other Physical Dimension: 4-5/32 inches Inlet Center To Top Of Valve
-
Anti-Water Hammer: No
-
Specifications Met: UL, CSA Listed General Purpose Valve, CE - Low Voltage, EMC
-
Number Of Ports: 2
