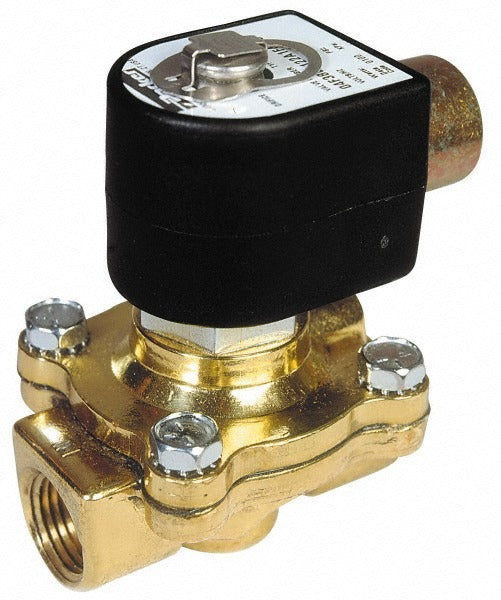

Parker 24F24C2180A3F 2-way Solenoid Valve 1-1/2 in Npt

Product Description

The PARKER 24F24C2180A3F is a two-way, piloted diaphragm solenoid valve designed for fluid control in industrial, HVAC, and process piping systems. It features a 1-1/2 inch NPT port, a normally closed unactuated state, and a brass body with an NBR seal. The valve accepts a wide range of coil voltages including 12 Vdc, 24 Vdc, 120 Vdc, 24/60 Vac, 120/60 to 110/50 Vac, and 240/60 to 220/50 Vac, making it adaptable to varied electrical supply configurations. Rated for a maximum working pressure of 125 psi and a maximum temperature of 150 degrees F, it is suited for demanding on-off flow control applications. Licensed trades including plumbers, pipefitters, and HVAC mechanics typically install this valve in commercial and light industrial systems.

This valve is commonly installed in water, air, and compatible fluid piping systems requiring automated on-off control. Its piloted diaphragm design requires a minimum operating pressure differential of 5 psi to actuate, which makes it appropriate for pressurized supply lines rather than gravity-fed or low-pressure systems. The 1-1/2 inch NPT threaded port suits standard schedule pipe and fittings found in commercial mechanical rooms, process skids, and rooftop HVAC equipment. The Cv factor of 22.5 supports adequate flow throughput for mid-sized lines. Note that solenoid coils are not included and must be ordered separately to match the intended supply voltage.

Key Features

• Normally closed two-way piloted diaphragm design — closes automatically on power loss
• 1-1/2 inch NPT port with 1-1/4 inch orifice and Cv factor of 22.5 for strong flow performance
• Brass body with NBR seal for compatibility with water and general-purpose fluid service
• Multi-voltage coil compatibility: 12 Vdc, 24 Vdc, 120 Vdc, 24/60 Vac, 120/60 to 110/50 Vac, 240/60 to 220/50 Vac
• Rated to 125 psi maximum working pressure and 150 degrees F maximum temperature
• CSA Certified, UL Listed, and NEMA 4X rated for wet or washdown environments

Compatibility

Cross-references ASCO Number 8210G22. Designed as an OEM-style replacement or direct-install two-way piloted diaphragm solenoid valve for pressurized water, air, or compatible fluid piping systems requiring 1-1/2 inch NPT connections. Confirm coil voltage selection against available electrical supply before ordering coils separately.

Installation Notes

Installation should be performed by a licensed plumber, pipefitter, or qualified HVAC mechanic in accordance with applicable local mechanical codes. Shut off and depressurize the supply line and disconnect electrical power to the control circuit before removing the existing valve or making connections. This valve requires a minimum operating pressure differential of 5 psi and will not function correctly in zero-differential or gravity-drain applications. Solenoid coils are not included — select a coil rated for the supply voltage prior to commissioning.
