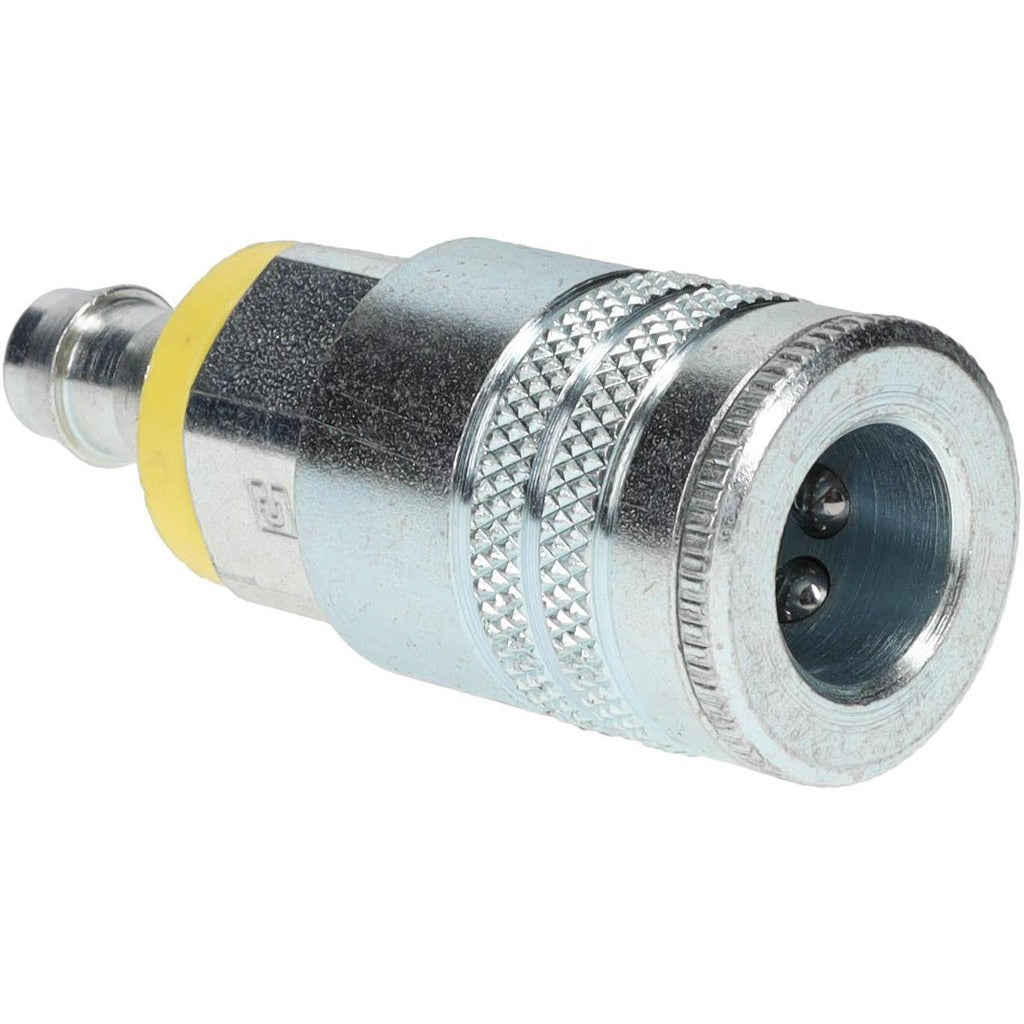

Parker 24-5BP Pneumatic Hose Coupling 3/8 Inch Industrial

Product Description

The PARKER 24-5BP is a steel pneumatic hose coupling designed for use in industrial compressed-air and pneumatic fluid-power systems. This coupler features a Push-Lok hose barb thread type and a 3/8-inch body diameter with a 3/8-inch hose inside diameter, making it a direct-fit component for standard industrial interchange pneumatic lines. The zinc chromate finish provides corrosion resistance in shop and field environments. Rated to 300 psi maximum working pressure and operable across a temperature range of -40 degrees F to 250 degrees F, the 24-5BP suits demanding service conditions. Licensed HVAC and mechanical contractors, pipefitters, and industrial maintenance technicians are the typical installers.

This coupling is built to the Series 20 Industrial Interchange standard, which is the most widely used pneumatic coupling format in North American industrial and commercial facilities. It is appropriate for use in compressed-air distribution systems, pneumatic tool hookups, and fluid-transfer lines where a reliable push-lok barb connection is required. The 3/8-inch inside diameter sizing is compatible with standard 3/8-inch pneumatic hose used throughout HVAC mechanical rooms, manufacturing facilities, and service vehicles.

Key Features

• Series 20 Industrial Interchange design for broad compatibility with standard pneumatic couplers
• Push-Lok hose barb connection for secure, tool-free hose attachment
• 300 psi maximum working pressure rating
• Operating temperature range of -40 degrees F to 250 degrees F
• Zinc chromate finish over steel body for corrosion resistance
• Compact overall length of 2.88 inches with 0.88-inch hex size for wrench access

Compatibility

Designed as an OEM-style replacement or new-installation coupler for Series 20 Industrial Interchange pneumatic systems using 3/8-inch inside diameter Push-Lok hose barb connections.

Installation Notes

Installation is typically performed by licensed mechanical contractors, pipefitters, or qualified industrial maintenance technicians. Always depressurize and lock out the pneumatic system before disconnecting or replacing any coupling. Use an appropriately sized wrench on the 0.88-inch hex to achieve a secure fitting connection without over-torquing. Verify the hose inside diameter matches the 3/8-inch barb before assembly to ensure a leak-free seal.
