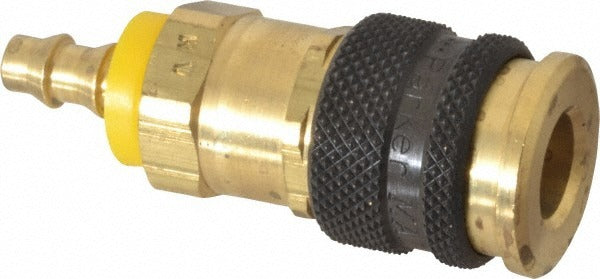

Parker 23KATP06MPN Pneumatic Hose Coupling 1/4 in Brass

Product Description

The PARKER 23KATP06MPN is a brass pneumatic hose coupling from the 23 Series, designed for Industrial Interchange applications using a Push-Lok hose barb connection. The coupler features a 1/4 inch body diameter and accepts hose with a 1/4 inch inside diameter. With a maximum working pressure of 300 psi and an operating temperature range of -4 degrees F to 212 degrees F, this fitting is suited for compressed air and pneumatic circuit service in both shop and field environments. It is installed by HVAC technicians, pneumatic system mechanics, and industrial maintenance trades wherever quick-connect pneumatic fittings are required.

This coupler is intended for use in Industrial Interchange pneumatic systems where a Push-Lok hose barb termination is required. The 23 Series design is common in compressed air tool lines, pneumatic control circuits, and general industrial air service. At 2.64 inches overall length with a 0.81 inch hex size, it fits standard installation clearances in equipment panels, manifolds, and inline hose assemblies. It is appropriate for both light industrial and commercial pneumatic applications operating within the rated pressure and temperature limits.

Key Features

• Brass body construction provides corrosion resistance in compressed air service
• Industrial Interchange coupler type for broad system compatibility
• Push-Lok hose barb thread type for secure hose retention without clamps
• Rated to 300 psi maximum working pressure
• Operating range of -4 degrees F to 212 degrees F covers most shop and light industrial environments
• Compact 2.64 inch overall length suits tight installation spaces

Compatibility

Designed as an OEM-style replacement or direct-fit component for Industrial Interchange pneumatic systems requiring a 1/4 inch body, Push-Lok hose barb coupler in the PARKER 23 Series.

Installation Notes

Installation is performed by licensed pneumatic or industrial mechanical trades. Depressurize and lock out the pneumatic system completely before removing or installing any coupling. Verify hose inside diameter matches the 1/4 inch barb specification before pushing the hose onto the barb to ensure a proper seal. Do not exceed the 300 psi rated working pressure or the stated temperature limits during service.
