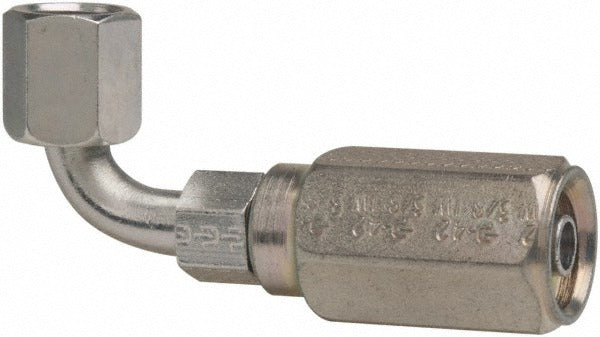

Parker 23942-6-6 Female Jic Swivel 90 Elbow 5000 Psi

Product Description

The PARKER 23942-6-6 is a short drop female JIC swivel 90-degree elbow fitting designed for use in high-pressure hydraulic hose assemblies. Manufactured from steel, this Series 42 fitting accepts a 3/8-inch (0.375-inch ID) hose and uses a 9/16-18 threaded connection. It is rated for a maximum working pressure of 5,000 psi, making it suitable for demanding hydraulic circuits found in industrial and mobile equipment applications. The swivel design allows for easier hose routing and reduces torsional stress during installation. Licensed hydraulic technicians and fluid power mechanics are the typical installers for this type of fitting.

This fitting is designed for use with Parker 421, 431, 436, 482TC, and 482ST hose series. The 90-degree elbow geometry is commonly used where hose assemblies must transition direction in tight spaces or around obstacles in hydraulic systems. It is appropriate for both stationary industrial hydraulic equipment and mobile machinery requiring reliable, leak-free hose terminations at rated working pressure.

Key Features

• Short drop female JIC swivel configuration allows directional hose routing with reduced torsion at assembly
• 5,000 psi maximum working pressure rating supports high-pressure hydraulic circuit demands
• 9/16-18 thread size for secure, leak-resistant threaded connection
• 3/8-inch (0.375-inch) hose inside diameter matches standard hydraulic hose sizing
• Steel construction for durability in industrial and mobile equipment environments
• Manufactured under ISO 9001:2015 quality management standards

Compatibility

Designed for use with Parker 421, 431, 436, 482TC, and 482ST hydraulic hose series in Hose Size 6 assemblies.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power mechanic. Depressurize and isolate the hydraulic circuit fully before removing or installing any hose fittings. Use appropriate wrenching flats to torque the fitting without twisting the hose body. Verify thread engagement and inspect for leaks before returning the system to operating pressure.
