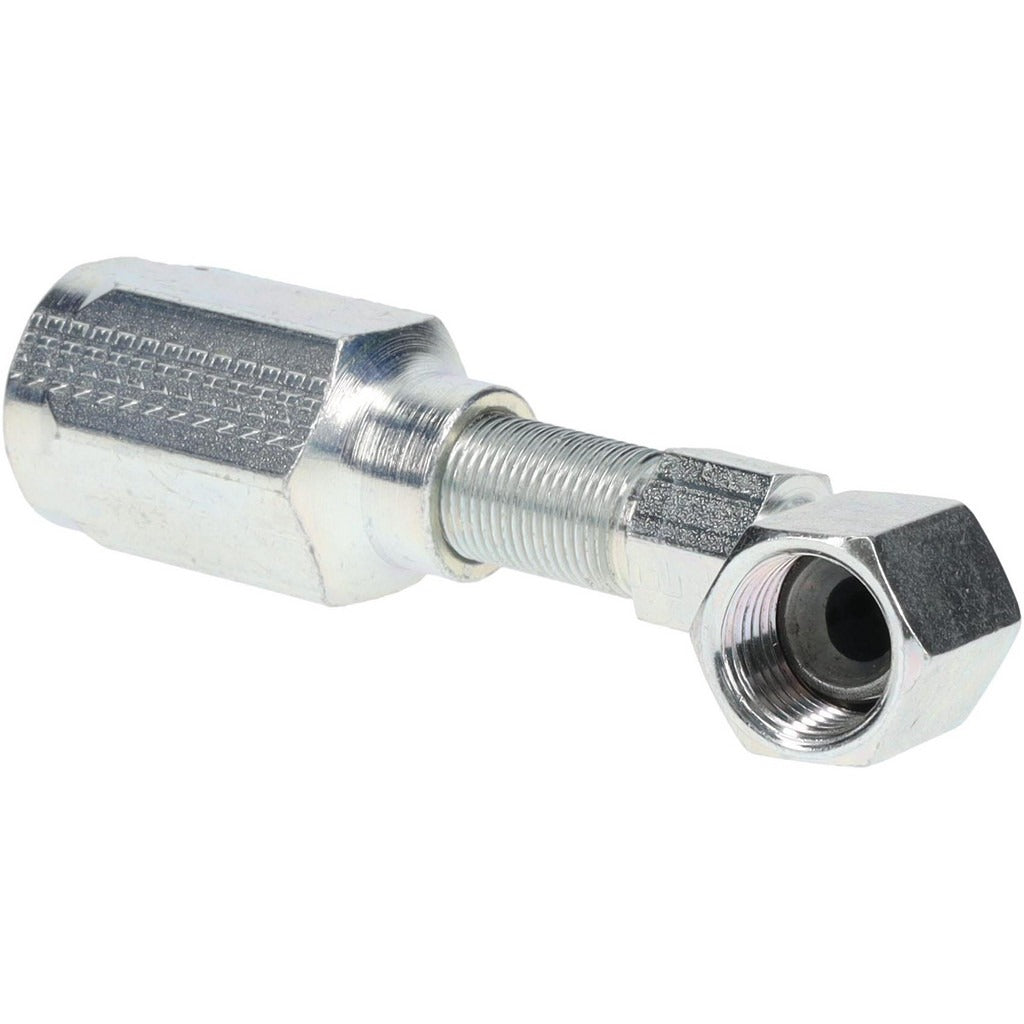

Parker 23930-6-6 Hydraulic Swivel 45 Elbow Fitting Steel

Product Description

The PARKER 23930-6-6 is a female swivel 45-degree elbow fitting designed for use in hydraulic hose assemblies. Manufactured from steel, this fitting connects to hose with a 0.375-inch (3/8 inch) inside diameter and threads onto mating components using a 9/16-18 female JIC threaded connection. The swivel design allows the hose to be positioned without twisting during assembly, reducing installation time and the risk of hose stress at the connection point. It is a Series 30 fitting intended for professional hydraulic system assembly and maintenance work performed by hydraulic technicians and industrial service crews.

This fitting is rated for use with Parker 301 and 381 hose series in hydraulic system applications. It is suited for mobile equipment, industrial machinery, and fluid power systems where a 45-degree angled hose exit is required at a port or component connection. The 9/16-18 JIC thread is a widely used standard in hydraulic plumbing, making this fitting applicable across a broad range of equipment platforms where a size 6 hose fitting is called for.

Key Features

• Female swivel design allows hose rotation during installation to prevent twisting
• 45-degree elbow geometry provides angled hose routing in tight or confined spaces
• Steel construction for durability in hydraulic service environments
• 9/16-18 female JIC threaded connection — a widely standardized hydraulic port thread
• Size 6 fitting for 0.375-inch (3/8 inch) ID hydraulic hose
• Manufactured under ISO 9001:2015 quality management standards

Compatibility

Designed for use with Parker 301 and 381 hydraulic hose series. Fits size 6 hose with a 0.375-inch inside diameter and mates to 9/16-18 JIC threaded ports.

Installation Notes

Installation should be performed by a qualified hydraulic technician familiar with fluid power system assembly. Depressurize and drain the hydraulic system completely before disconnecting or installing any fittings. Use appropriate wrenching flats only — do not grip the swivel body when torquing to avoid damaging the swivel mechanism. Verify thread engagement and inspect for leaks after returning the system to operating pressure.
