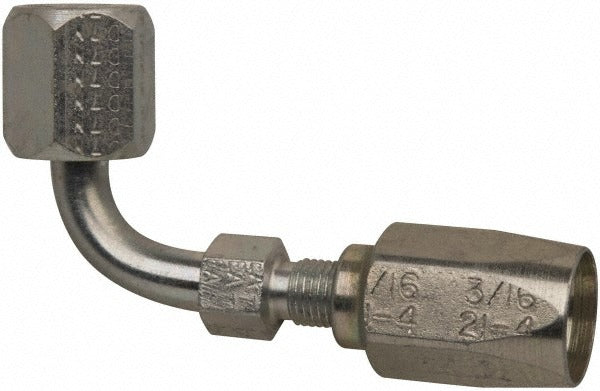

Parker 23921-4-4 Female Jic Swivel 90 Elbow 6000 Psi

Product Description

The PARKER 23921-4-4 is a short drop female JIC swivel 90-degree elbow fitting designed for use in hydraulic hose assemblies. Constructed from steel, it connects a 1/4-inch hose to a female JIC swivel end at a 90-degree angle, allowing for compact routing in tight spaces. The fitting is rated to 6,000 psi, making it suitable for high-pressure hydraulic circuits. It uses a 7/16-20 thread size and a 3/16-inch shaft thread. Licensed hydraulic technicians, equipment mechanics, and industrial maintenance professionals typically install this type of fitting when assembling or repairing mobile or stationary hydraulic systems.

This fitting is used in hydraulic hose assemblies where a right-angle connection is required to route hose around obstructions or reduce bending stress at the hose end. The short drop configuration keeps the fitting profile low, which is useful in confined equipment bays. It is appropriate for use in mobile equipment, industrial machinery, and other systems operating with compatible hydraulic fluids and pressures at or below 6,000 psi.

Key Features

• 6,000 psi pressure rating for high-pressure hydraulic service
• Short drop 90-degree swivel design reduces hose strain in tight routing
• Female JIC swivel end provides leak-resistant metal-to-metal seat connection
• Steel construction for durability in demanding hydraulic environments
• 7/16-20 thread size compatible with standard JIC fittings
• Fits 1/4-inch hydraulic hose

Compatibility

Designed as an OEM-style hydraulic hose fitting for systems using 1/4-inch hose with female JIC swivel connections and a maximum working pressure of 6,000 psi.

Installation Notes

Installation should be performed by a qualified hydraulic technician or equipment mechanic. Depressurize and isolate the hydraulic circuit completely before disconnecting or installing any fittings. Inspect the JIC seating surfaces for damage before assembly and torque to the fitting manufacturer's specified value using a calibrated torque wrench. Do not overtighten swivel fittings, as this can damage the seating surface and cause leaks.
